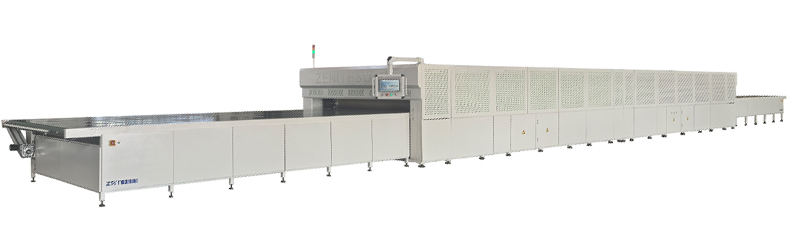

Laminator Introduction
In the production process of photovoltaic modules, the Laminator holds a crucial core position. As an indispensable key equipment in the entire solar panel production line, its performance and operational status directly affect the final quality and reliability of photovoltaic modules. The main function of the laminator is to stack the material layers in a specific order, including transparent tempered glass with good optical properties, ethylene-vinyl acetate copolymer (EVA) film for encapsulation and bonding, solar cells as the core of energy conversion, and backsheets that serve as insulation and protection. Tight bonding and curing are carried out under precisely controlled extremely high temperatures and pressures.
Technical parameters
| Power | AC380V/50Hz/3Phase/5Line | Air pressure | 0.6～1.0MPa |
| Compressed Air Folw | 800L/min | Lamination area | 2700mm×6000mm×2 |
| Laminated cavity height | 30mm | Peak Power | 140KW |
| Normal power | ≈80KW | Vacuum Rate | (604M3 +302M3 )/High Efficiency Vacuum Pump |
| HMI | 10.4”Touchscreen | Noise at Work | <65dB |
| Working Temperature | 100℃～160℃ | Temperature PLC PID Control Accuracy | ±1.0℃ |
| Temperature Uniformity | ≤ ± 1.5 ℃ | Lamination time | PVB/EVA :12-15/min |
| Vacuum Time | 90 seconds 100Pa | Cover travel | 200mm |
| Weight | 46.6T | Dimensions(mm) | 27.4m×3.72m×1.85m |
Loading and Consolidating
