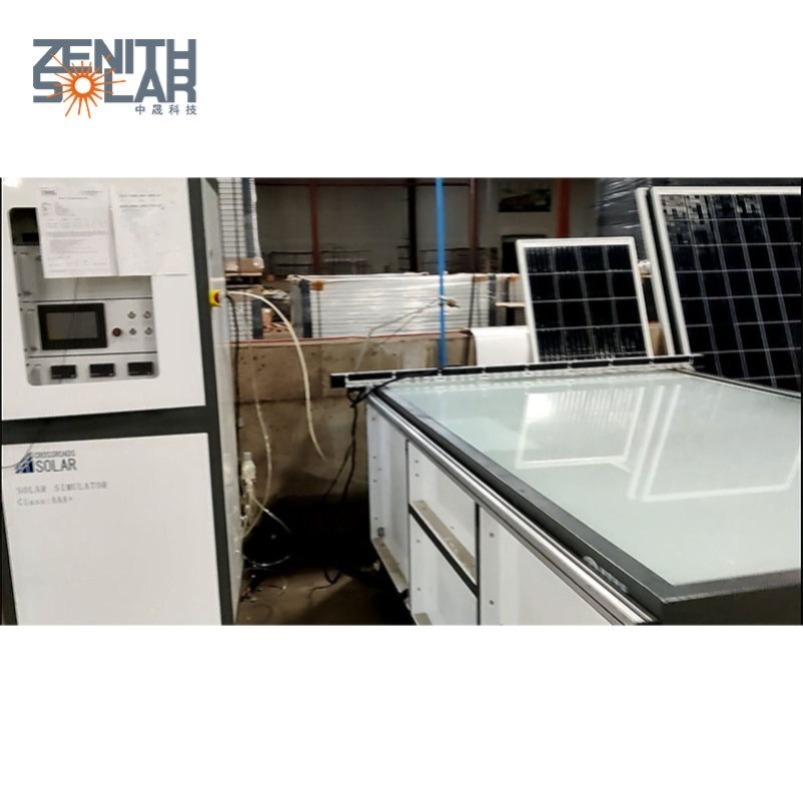

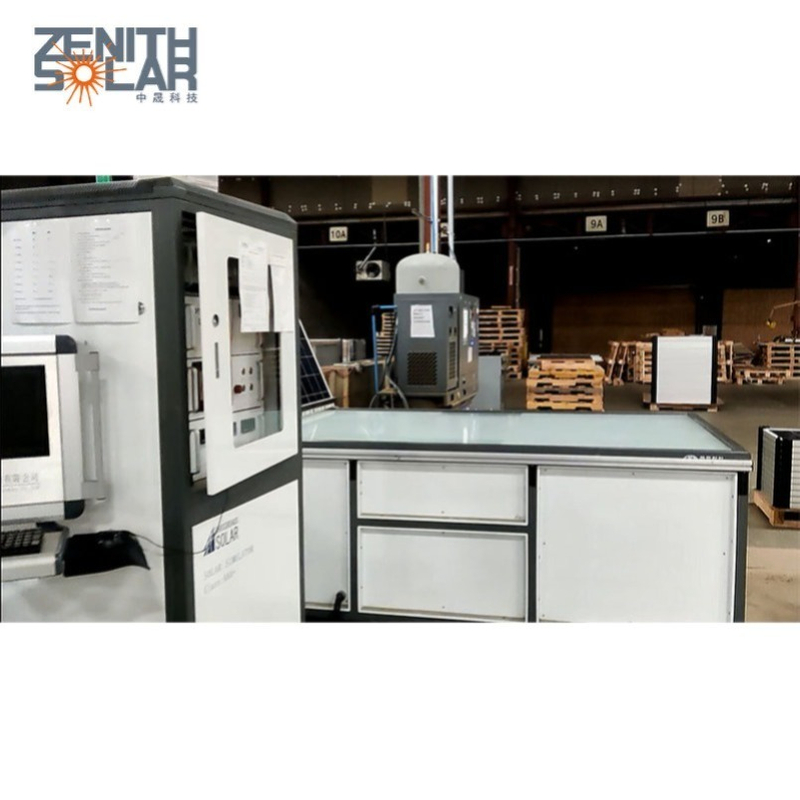

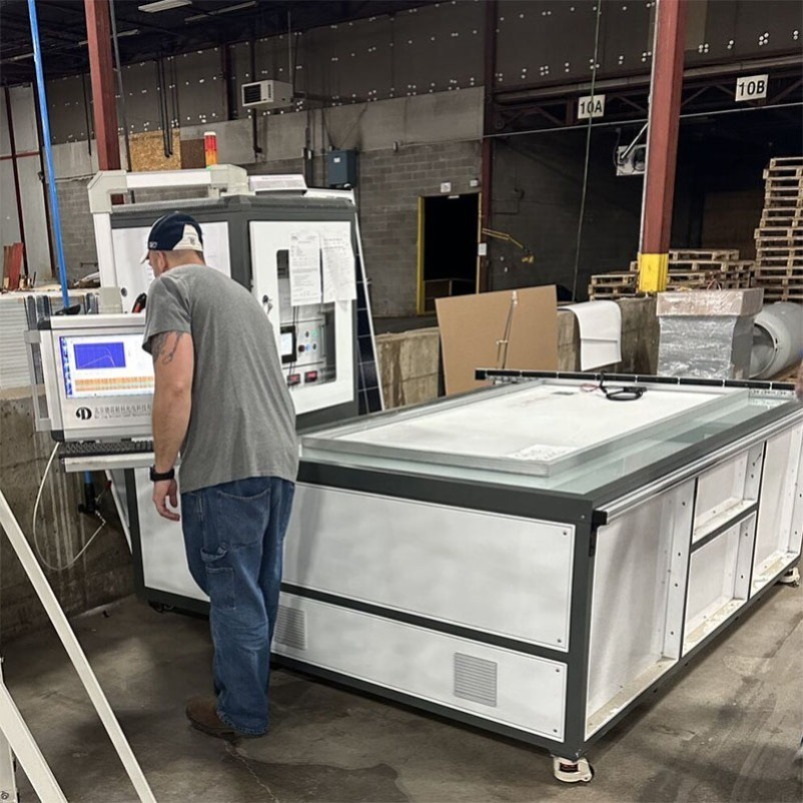

Class A+A+A+ Solar Module Simulator CE/ISO Certified
I-V curve, P-V curve, irradiance line, short circuit current (Isc), open circuit voltage (Voc), peak power(Pm), voltage at the peak power point(Vm), current at the peak power point (Im), constant voltage, constant current, filling factor (FF), conversion efficiency (EFF), series resistance (Rs), parallel resistance (Rsh), etc..
Class A+A+A+ Solar Panel Sun Simulator CE/ISO Certified
Main features:
1. Measurable parameters: I-V curve, P-V curve, irradiance line, short circuit current, open circuit voltage, peak power, peak power point voltage, current, fixed voltage point current, fill factor, conversion efficiency, series resistance, parallel resistance, etc.
2. The solar module adopts four-wire connection to ensure the accuracy of solar cell current measurement
3. Infrared temperature measurement ensures the accuracy of solar cell temperature correction
4. Optical feedback system to ensure the stability of irradiance
5. The main spectral range: 300-1200nm, the wavelength is extended to 300-1700nm, long-wavelength band has energy output
6. The test is fast, a single test takes less than 1 second, 10ms pulse width test interval is 5 seconds, 100ms pulse width test interval is 18 seconds
7. Long pulse width + smart load technology, compatible with the testing of high-capacity battery components such as polycrystalline, single-crystalline PERC, TopCon,HJT and IBC
8. According to the IEC60904-1-2 standard, it has the ability to upgrade the upper and lower light sources to test at the same time
Certification
Contact me
Production Description
Class A+A+A+ Solar Panel Sun Simulator CE/ISO Certified
Main features:
1. Measurable parameters: I-V curve, P-V curve, irradiance line, short circuit current, open circuit voltage, peak power, peak power point voltage, current, fixed voltage point current, fill factor, conversion efficiency, series resistance, parallel resistance, etc.
2. The solar module adopts four-wire connection to ensure the accuracy of solar cell current measurement
3. Infrared temperature measurement ensures the accuracy of solar cell temperature correction
4. Optical feedback system to ensure the stability of irradiance
5. The main spectral range: 300-1200nm, the wavelength is extended to 300-1700nm, long-wavelength band has energy output
6. The test is fast, a single test takes less than 1 second, 10ms pulse width test interval is 5 seconds, 100ms pulse width test interval is 18 seconds
7. Long pulse width + smart load technology, compatible with the testing of high-capacity battery components such as polycrystalline, single-crystalline PERC, TopCon,HJT and IBC
8. According to the IEC60904-1-2 standard, it has the ability to upgrade the upper and lower light sources to test at the same time
