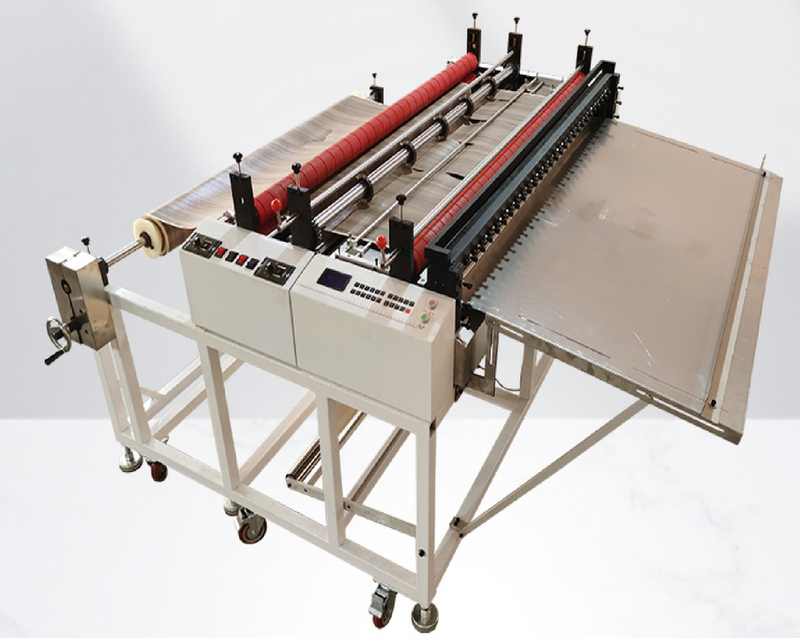

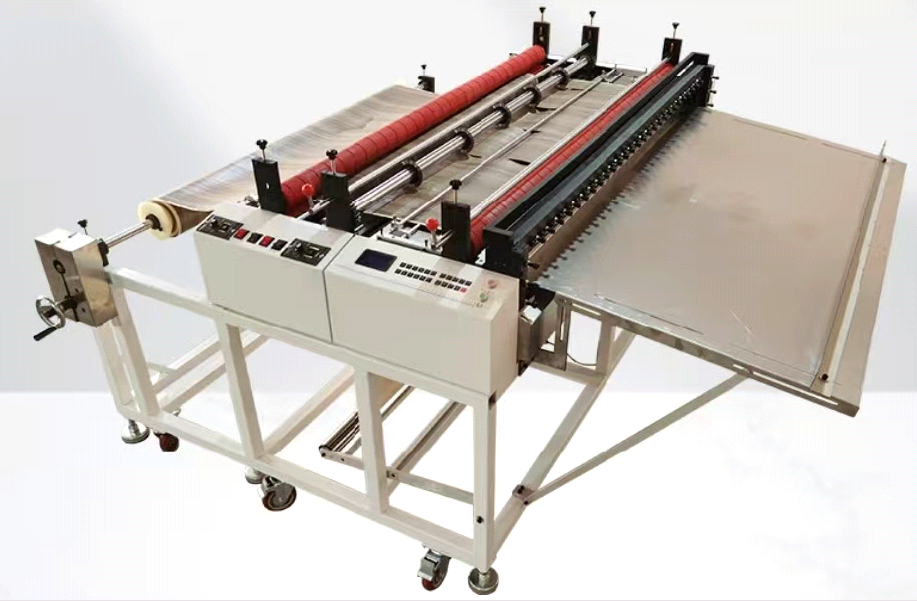

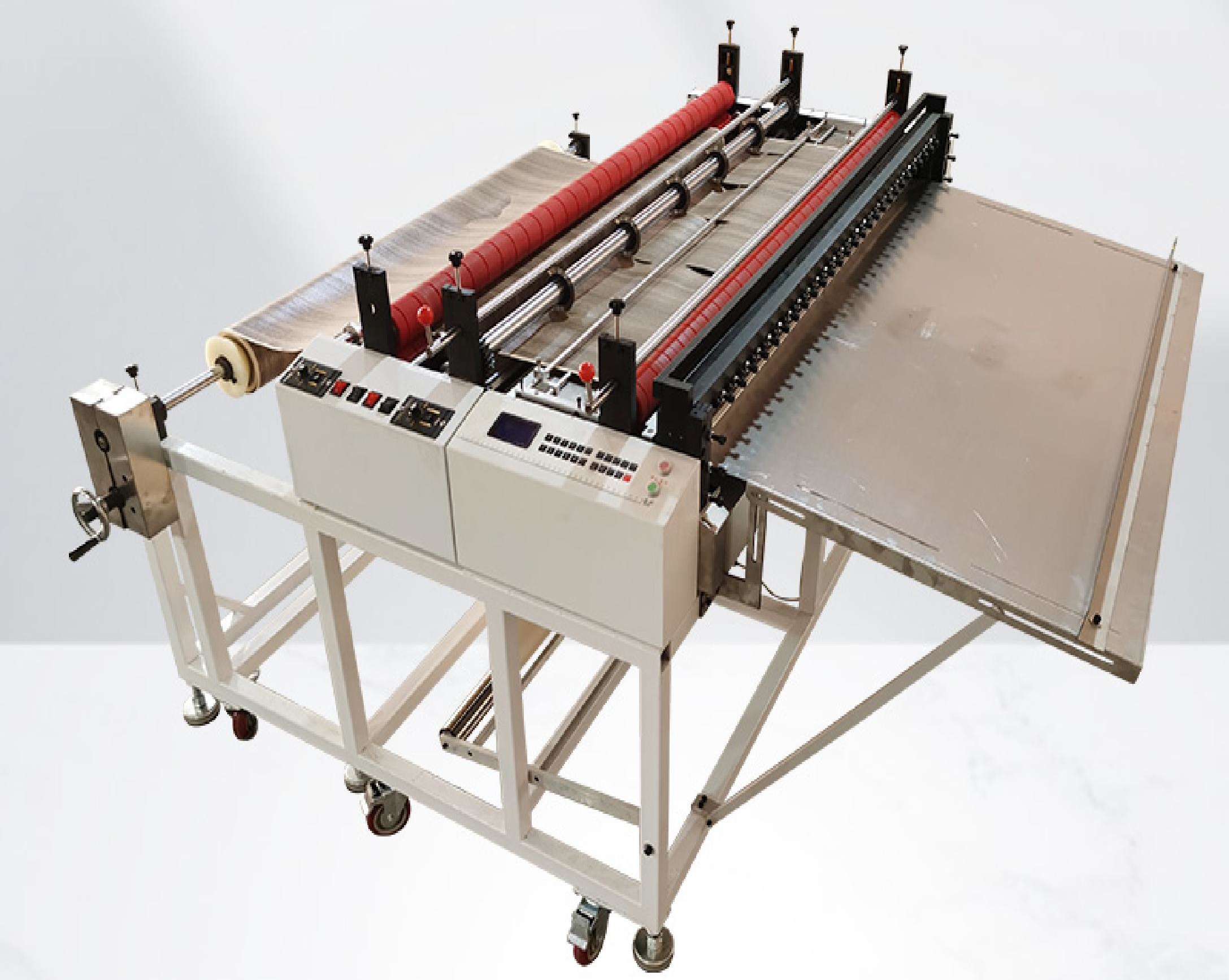

Fully Automatic EVA TPT Automatic Cutting Machine
1500TR
Parameter：
Power supply: 220V/50Hz Blade material: SKD11
Feeding speed: 70m/min
Cutting length: 1mm-100m Cutting width: 0.1mm-1400mm
Motor: power increased AC motor accuracy: 0.1mm
Weight: 600kg Dimensions: L200 * W190cm * H110cm
Characteristic:
*High speed automatic feeding, controlled by microcomputer program with an accuracy of 0.1mm;
*When operated automatically or manually, it can feed forward or backward, and can be manually cut off;
*Equipped with forward and backward functions, automatic counting, shutdown upon arrival, and power-off memory saving function
*The cutting speed of the computerized pipe cutting machine is adjustable, with a fully Chinese LCD display;
*The cutting length and speed of the computerized pipe cutting machine can be continuously adjusted;
*Automatic grouping and total cumulative counting of computerized pipe cutting machine;
*Batch pause and delay time can be set;
*Fully automatic cutting of various sheet and tubular materials; There is an additional feeding pulley installed behind the machine, which can automatically accommodate the stacking and feeding of strip rolls
*High speed stepper motor for precise control of pipe cutting length; Adjustable tape length and speed;
*Cutting time protection for computerized pipe cutting machines; Total number setting; Divide the setting; The pause time can be adjusted;
*The computerized pipe cutting machine is equipped with various manual operations for easy debugging;
*The computer tube cutting machine has a large LCD screen with intuitive Chinese display, and the operation is simple and convenient;
*Using specialized mechanical structures and special cutting tools, coupled with specialized software control, to achieve a flat cut and accurate length
Function and Scope of Application:
This computer slicer is suitable for heat shrink tubing, PVC tubing, yellow wax tubing, fiberglass tubing, PE tubing, and silicone tubing,
Electrolytic capacitor PVC sleeve, PVC plastic tape, wire harness, plastic hose, nylon tube, PTFE tube, insulation paper, copper foil, copper tape, nickel tape,
Non woven fabric, acetate fabric, conductive fabric, cotton yarn tape, elastic tape, Velcro, zipper and other tape or film (tube) shapes can be cut to a fixed length
Warranty period:
The whole machine comes with a one-year warranty, and the motherboard comes with a three-year free warranty.
