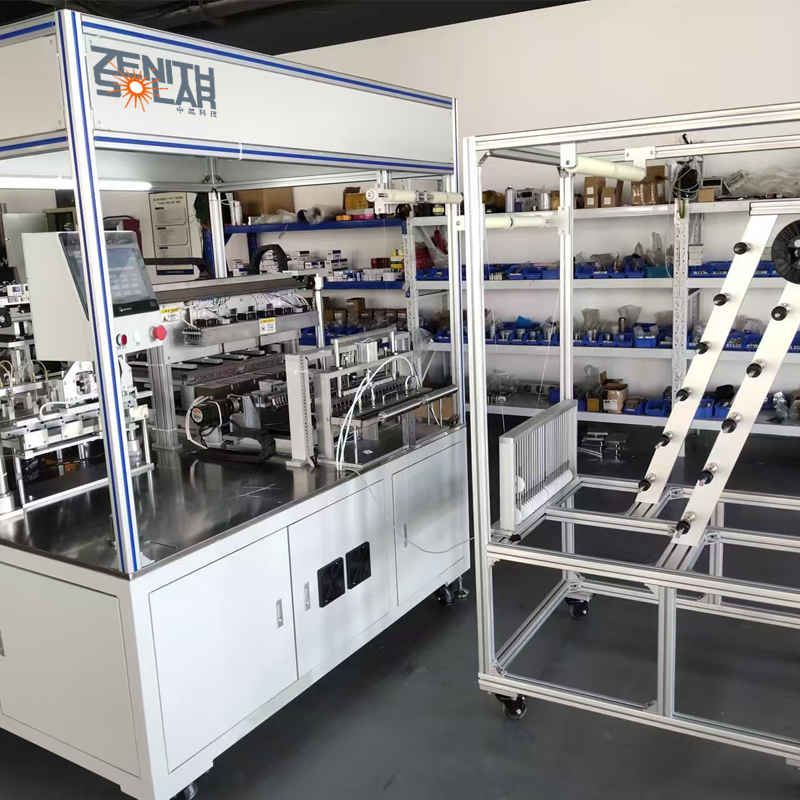

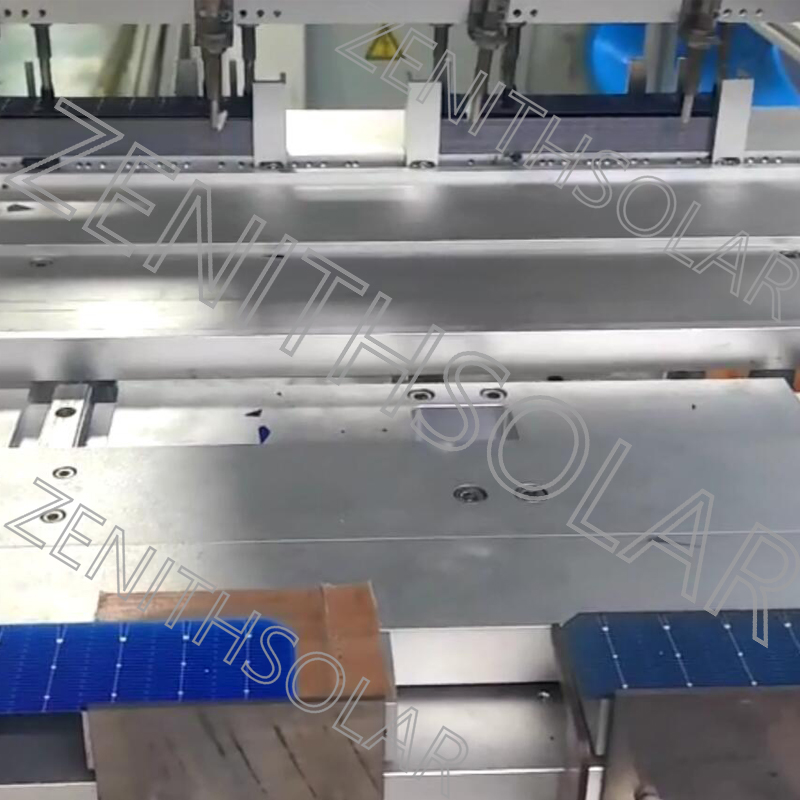

Features
1. High compatible for various size cells, and 5-12busbar cells.
2. High automation, reliable and safe operation, easy to operation, low noise.
3. Adjust the soldering movement according to the setting cell strings number to meet the required cell number.
4. Good electric conductivity after welding.
5. Short soldering time, fast and energy saving, high intensity of fusion .
特点
1. 高度兼容 多种尺寸 5-12 栅电池片。
2. 自动化程度高，操作安全可靠、简便，运转平稳，噪声小。
3. 系统可根据设定的串接片数自动调整焊接动作，使输出的电池片串达到要求片数。
4. 焊接后太阳能电池导电性好。
5. 焊接时间短，快速节能，熔合强度高。
Item # 序号 | Item name 项目 | Specifications 参数 | Remark 备注 |
1 | Soldering Capacity 焊接速度 | Max 2000 pcs/h (<105mm length cells), Max 1000 pcs/h (>105mm length cells) 焊接片长小于 105MM 电池片最快可达 2000 片每小时，焊接片长大于 105MM 最快可达 1000 片每小时。 |
|
2 | Cell Size 电池片尺寸 | (15-53)mm width* (78-210)mm length （15~53）宽x（78-210）长mm 可调 | The length is the size of the vertical busbar 长是指垂直于栅线的尺寸 |
3 | Cell busbar 电池片栅线 | 5-12BB 5-12栅 |
|
4 | Applicable ribbon 适用的焊带 | Thickness：0.08-0.16mm, Width：0.5-0.8mm 厚：0.08-0.16mm，宽： 0.5-0.8mm |
|
4 | Max. Length of string 电池串最大长度 | 700mm |
|

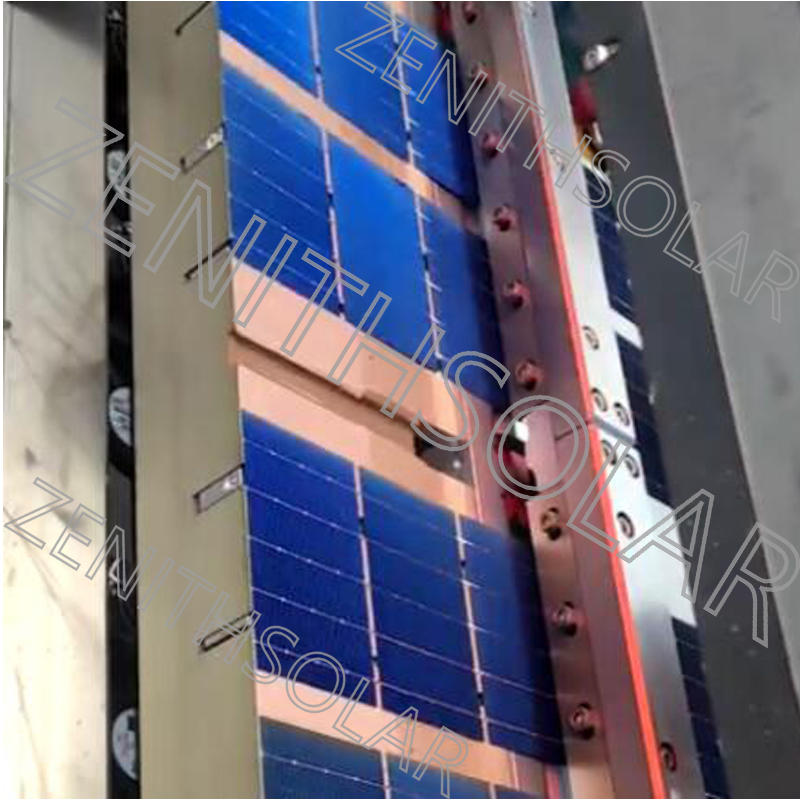

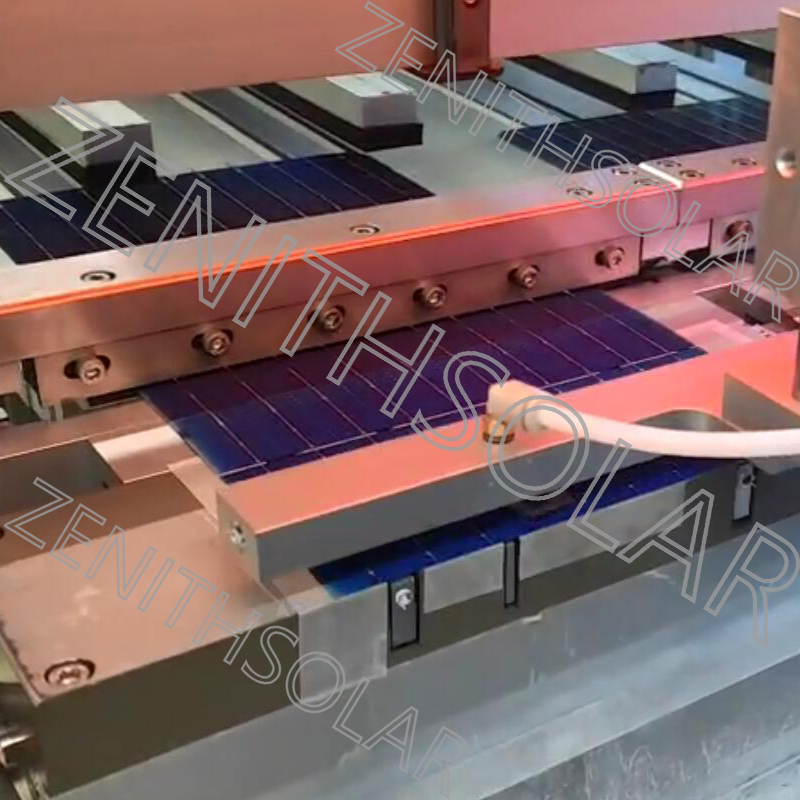

5 | Cell spacing 电池片间距 | 1-10mm (adjustable) | According to the thickness of the pv ribbon, the width of the cell and other factors will be limited. 根据焊带的厚度，电池片的宽度等因素的不同会有所限制。 |
6 | Breakage Rate 碎片率 | ≤0.3% | On the basis of Grade A cells A片基础上 |
7 | Qty of welding string 焊接串数 | >105mm length cells can weld 2 strings at the same time. <105mm length cells can weld 4 strings at the same time. 焊接片长大于 105MM 可以同时焊接 2 串；焊接片长 小于 105MM 电池片可以同时焊接 4 串 | The length of the cell is the size of the vertical busbar 长是指垂直于栅线的尺寸 |
8 | Soldering technology | IR light heating |
|
9 | Soldering Lamp lifespan 焊灯寿命 | ≥1000 hours |
|
10 | Soldering temperature 焊接温度 | Normal~500℃ (adjustable） 常温—500℃ 可调 | Voltage regulator module control, simple and fast 调压模块电源控制， 简单快捷 |
11 | Power supply 电源 | Three-phase, five wire/AC380V/50~60Hz 50-60Hz/AC380V/三相五线 |
|
12 | Peak Power 峰值功率 | 10 KW |
|
13 | Rated power 额定功率 | 8 KW |
|
14 | Air source 气源要求 | ≥0.5MPa dry & clean air 0.5Mpa 以上洁净、干燥空气 |
|
15 | Air consumption 耗气量 | Approx 150 liter/min 约 150 升/分钟 |
|
16 | Operation interface 操作界面 | PLC touch-screen PLC 触摸屏操控 |
|
17 | Operator language 界面语言 | Chinese and English 中英文 |
|
18 | Dimension 尺寸 | 3340mmx1700mmx1970 mm | Length*width*height 长x宽x高 |
19 | Weight 重量 | About 1000KG 约 1000 公斤 |
|
