Premium Quality BIPV Laminator for Thick Solar Panel Production

Solar Laminator & Turnkey Production Line Expert

Expertise you can trust. Results you can see

Model:
ZST-AYZ-27-60
Brand:
zenithsolar
Code:
8486402900

Quantity:
Availability:





Inquire Add to Basket

Product Description

Production Description

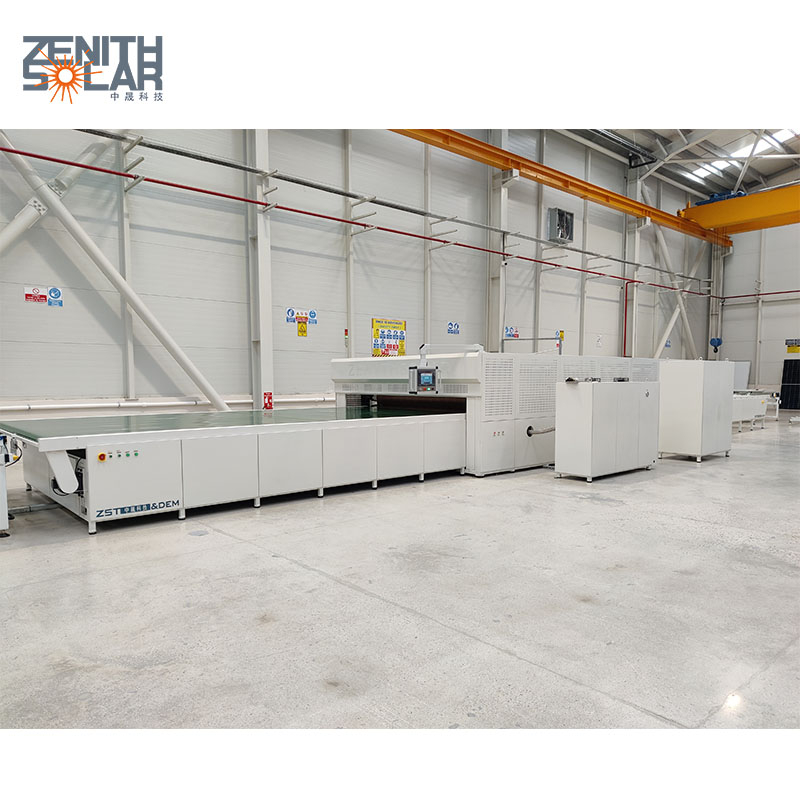

Premium Quality BIPV Laminator for Thick Solar Panel Production

1. Single-layer single-chamber / multi-chamber multi-layer

2. Oil heating or electric heating (achieving uniformity as oil heating)
3. PIN system (patented)
4. Chinese or German vacuum pumps
5. Working area ranging from 500×500mm to fully customized larger sizes

6. Support for BIPV ultra-thick modules

未标题-2

未标题-3

Parameter

Dimensions（mm）

19700×3720×1850

Net Weight

23000Kg

Power Supply

AC380V 3Phase 5 Line

Compressed Air Pressure

0.5-1MPa

Compressed Air Flux

800L/min

Lamination Size

2700mm×6000mm

Laminated Cavity Height

30mm

Max. Power

68KW

Working Power

40KW

Heating Board Temperature Uniformity

±1.5℃

Max Working Temperature

100℃-160℃

Top & Bottom

Brush Clean System

Working Time

12-15 Mins

Vacuuming Speed

90s

Loading Machine

PVC conveyor

Unloading Machine

Roller &Cooling Fan

Certification

laminator
