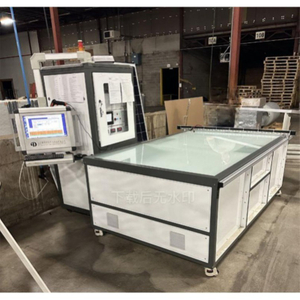

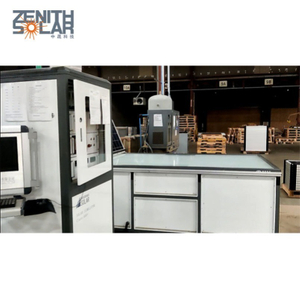

Laboratory Specific Solar Simulator

Name: Laboratory Specific Solar Simulator
Brand: Zenithsolar
Rating: 5.0 (85 reviews)

The spectrum range meets the range of 300-1200nm, realizing the full spectrum test of high-efficiency crystal silicon cells, and greatly improving the accuracy of the test. Four-wire connection and high-speed data acquisition system ensure the accuracy of solar cell current measurement.

Model:
ZST-ZG500
Brand:
Zenithsolar

Quantity:
Availability:





Inquire Add to Basket

Product Description

Laboratory Specific Solar Simulator - ZENITHSOLAR

The spectrum covers wavelengths from 300 to 1200nm, enabling thorough testing of high-efficiency crystal silicon cells and greatly improving test accuracy. Utilizing a four-wire connection and a high-speed data acquisition system ensures accurate measurement of solar cell current.

Characteristics

A+ A+ A+ rating: exceeding the IEC60904-9 2020 standard.
Wide range of light wavelengths from 300 to 1200nm: providing precise measurement of module performance at various wavelengths.
A+ grade spectrum alignment
Use of electronic load: allows for scanning in both Isc → Voc and Voc → Isc directions.
Materials for testing: PERC, N-type, HJT, CIGS, standard crystalline silicon, and other technical components.

Technical Parameter

Solar simulator level	A+A+A+
Level standard	IEC 60904-9 2020
Capacity	<4s/pcs（10ms） <25s/pcs（100ms）
Max. Illumination area	2600×1600mm
Light direction	Lighting upwards
Spectral range	300-1200nm
Spectral match	0.875-1.125 (A+ class)
Non-uniformity of irradiance	<1% (A+ class)
Instability of irradiance	STI<0.2% LTI<1% (A+ class)
Irradiance range:	700-1200W/㎡(Adjustment)
ISC 60 times repeatedly	<0.3%
Test parameters	Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh
Test pulse width	10-150ms (Adjustable)
Lifetime of light	>100000 times (10ms)
Measurement Range	Voltage：0-100V（resolution 1mV） Current：0-20A（resolution 1mA）
Measured power	800W (max.)
Mode of wire connecting	Four-wire method
Software function	Support scan gun trigger test. Support test data saving, query, export. Support test results voice broadcast. Support pedal trigger test and automatic temperature compensation.
Working environment	Temperature: 25℃±10℃； Relative humidity: ≤85%
Power	AC220V/50Hz/20A
Dimension	2800mm1800mm880mm 900mm900mm1800mm 900mm650mm950mm
Warranty	One year
