Acquiring laboratory equipment requires rigorous evaluation. You cannot treat a solar simulator as just another basic lab purchase. It stands as a critical compliance and quality assurance investment. Replicating natural sunlight sounds simple on paper. However, the precise mechanical execution directly impacts R&D validity, solar panel production yields, and international certification. You risk failing audits or mischaracterizing module efficiency if you choose poorly. We will break down how these complex optical systems function. You will learn about core components, light sources, and crucial industry standards. Understanding these underlying working principles is the only reliable way to proceed. It enables you to accurately evaluate, shortlist, and procure the exact right system for your specific testing environment. This guide delivers the technical clarity needed for informed procurement. We outline actionable steps to navigate complex specifications and secure verifiable performance.
Standardization is Non-Negotiable: A reliable solar simulator must meet specific international criteria (IEC, ASTM, JIS) for spectral match, uniformity, and stability.
Technology Dictates Application: The choice between Xenon arc lamps and LED technology hinges on budget, maintenance capacity, and continuous vs. flash testing needs.
Class AAA is the Baseline for Certainty: Procurement should prioritize verified Class AAA performance to ensure repeatable, audit-ready PV characterization.
Natural sunlight changes constantly. It remains highly variable, weather-dependent, and geographically inconsistent. You cannot rely on outdoor conditions to verify baseline performance accurately. Engineers need absolute consistency to measure photovoltaics effectively. A Solar Simulator solves this problem directly. It provides a highly stable, controlled irradiance environment inside the laboratory or factory floor.
This controlled setting allows R&D engineers and production managers to establish absolute baseline metrics. You can execute precise I-V (Current-Voltage) curve tracing and measure exact power outputs. Certification bodies universally accept these standardized metrics. Testing under Standard Test Conditions (STC) requires exactly 1000 W/m² of irradiance at a controlled temperature of 25°C. Only precision equipment can reliably maintain these exact parameters.

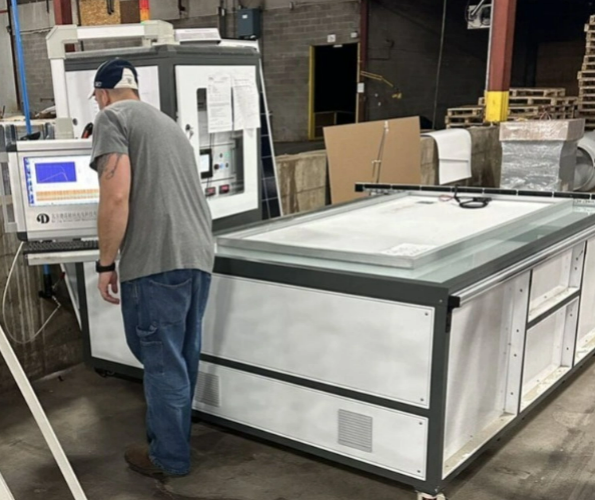

Testing requirements scale significantly depending on your specific product. You might analyze small PV cells in a research lab, requiring a compact illumination footprint. Alternatively, you might test full-size modules on a fast-paced manufacturing line. This larger scale necessitates a specialized Solar Panel Simulator for inline quality assurance. Manufacturers rely on these powerful systems to guarantee every panel meets expected wattage ratings before packaging and shipping.
To evaluate equipment effectively, buyers must understand the underlying hardware architecture. A highly coordinated sequence of components generates, refines, and delivers the light.
We can break down the fundamental architecture into four primary stages. Each stage must function perfectly to prevent data distortion.
System Component | Primary Function | Impact on Testing Quality |
|---|---|---|
Power Supply | Delivers highly stable, ripple-free current to the light source. | Prevents temporal instability and flicker during measurement. |
Light Source | Generates raw, high-intensity broad-spectrum light. | Determines the baseline spectral accuracy and thermal output. |
Optics & Filters | Refines, collimates, and filters the raw light beam. | Shapes the spectrum to AM1.5G and parallelizes light rays. |
Test Plane | The designated physical area where the DUT sits. | Defines the maximum size of the module you can test accurately. |
Systems use specific Air Mass (AM) filters to modify the raw light source. The standard for terrestrial solar testing is AM1.5G (Global). Raw light from a Xenon lamp or LED array does not perfectly match sunlight. The optical filters strip away excess infrared or ultraviolet energy. They ensure the final beam accurately mirrors the specific solar spectrum reaching the Earth's surface at a 48.2-degree zenith angle.
Uniform light distribution serves as the foundation of accurate testing. Systems achieve this using specialized collimators and optical homogenizers. Collimators force the scattered light rays to travel parallel to one another. This mimics the extreme distance of the actual sun. Homogenizers scramble and recombine the light. They eliminate hot spots and dark zones within the beam.
Expertise check: True working principles rely heavily on spatial uniformity. A Solar Simulator proves entirely useless if the light intensity varies across the surface area of the device under test (DUT). A common mistake involves assuming a high-wattage lamp automatically provides reliable testing. If one corner of a PV cell receives 1020 W/m² while another receives 980 W/m², the internal current mismatches. This spatial variation skews the entire efficiency calculation, rendering the certification invalid.
The light source functions as the engine of the simulator. Technical buyers must carefully weigh traditional reliability against modern precision. The industry primarily relies on two competing technologies.
Xenon arc lamps represent the historical industry standard. They operate by passing electricity through ionized xenon gas at high pressure.
Pros: They generate a naturally broad and continuous spectrum. They boast decades of well-documented performance data. Industry auditors widely trust and understand Xenon technology.
Cons: Xenon lamps suffer from extreme heat generation. They require robust, active cooling systems. The bulbs degrade rapidly, resulting in a much shorter lifespan. Crucially, the spectrum shifts as the bulb ages, requiring frequent recalibration.
Light Emitting Diode (LED) technology represents the modern evolution of PV testing. These systems utilize arrays of diverse, distinct colored LEDs to construct a composite spectrum.
Pros: LED systems deliver highly stable performance. They offer independent wavelength control, creating a tunable spectrum. Diodes last for thousands of hours without degrading. They emit very minimal infrared heat, drastically lowering the thermal impact on the DUT.
Cons: These systems demand higher initial capital expenditure. They also require highly complex calibration software to maintain the spectral match across multiple distinct diode types.
Decision Lens: You must balance immediate budget constraints against long-term operational efficiency. LED technology requires more upfront capital investment. However, LED systems drastically reduce maintenance downtime and continuous calibration disruptions compared to traditional Xenon setups. Facilities demanding maximum uptime generally lean toward LED infrastructure.
You must match the operational mode of the simulator directly to your specific use case. The division between laboratory research and high-volume production dictates the required light delivery method.
In a continuous simulator, the light remains on constantly. The lamp strikes once and burns steadily for the duration of the testing protocol.
Mechanism: Steady-state illumination delivered over prolonged periods.
Best for: R&D laboratories, accelerated degradation testing, thermal co-testing, and small cell characterization.
Implementation Risk: Continuous high-intensity light causes rapid heat accumulation on the PV sample. Photovoltaic efficiency drops as temperature rises. This thermal drift can easily skew efficiency data if the facility does not apply rigorous active cooling to the test bed.
Flashed simulators take a radically different approach. They operate more like a high-speed camera flash than a traditional lamp.
Mechanism: The system emits a high-intensity, extremely brief burst of light. Pulses typically last between 10 and 100 milliseconds.
Best for: Inline Solar Panel Simulator applications and high-throughput commercial manufacturing lines.
Benefit: The brief millisecond pulse completely eliminates the thermal load on the panel. The module remains at exactly 25°C during the measurement. This provides a flawlessly accurate reading of the panel's Standard Test Condition (STC) performance without any heat distortion. Furthermore, flash testers draw significantly less overall power, making them ideal for rapid, sequential factory testing.
Technical buyers need to decode compliance ratings carefully. Misunderstanding these grades frequently leads to under-speccing or over-speccing facility equipment. International standards, specifically IEC 60904-9, ASTM E927, and JIS C 8912, govern these classifications.
Regulatory bodies grade simulators across three independent performance categories. A letter grade (A, B, or C) is assigned to each pillar.
Spectral Match: Evaluates how closely the simulated light matches the ideal AM1.5G natural spectrum across specific wavelength bands.
Spatial Non-Uniformity: Measures how evenly the light falls across the designated target area. Class A requires less than 2% variance across the entire physical plane.
Temporal Instability: Assesses how stable the light output remains over time. This metric proves critical for avoiding data flicker during sensitive I-V sweeps.
A "Class AAA" designation simply means a system scored the highest possible grade (A) in all three categories. The first letter represents spectral match, the second represents spatial uniformity, and the third represents temporal stability.
Skeptical buyers must actively protect themselves during procurement. We warn buyers against manufacturers who claim "Class AAA" performance without providing certified, independent calibration reports. Anyone can print "Class AAA" on a brochure.
Best Practice: Always demand a verified spatial mapping report for the exact unit you intend to purchase. Highlight that a Class ABA or BBA system might suffice perfectly well for basic educational labs or qualitative materials testing. However, verified Class AAA performance remains strictly required for commercial QA, warranty backing, and certified academic research.
Moving from theory to procurement requires a structured evaluation framework. Follow these actionable steps to evaluate vendors and shortlist the correct hardware for your facility.
Physical space constraints dictate many purchasing decisions. Does your facility have the expansive floor space required for a large continuous Xenon system? These traditional units demand extensive exhaust ducting, active water cooling lines, and isolated power supplies. Conversely, if you operate in a constrained cleanroom environment, a compact, air-cooled LED unit might serve as your only viable option.
Never assume the illuminated area equals the usable testing area. Ensure the simulator's guaranteed uniformity area matches the exact maximum dimensions of the specific PV cells or panels you test. If you test a 156mm wafer, you need a Class A uniformity zone slightly larger than 156mm to account for edge positioning errors.
Shortlist only those vendors who embrace transparency. Refuse to accept generalized marketing claims. Demand transparent, third-party verifiable calibration certificates. Request documented Mean-Time-Between-Failures (MTBF) statistics for their specific light sources. You must know exactly when the system will require maintenance interventions.
Hardware represents only half of the testing equation. The simulator must communicate flawlessly with your existing infrastructure. Can the vendor's proprietary software interface seamlessly with your facility's existing I-V measurement source meters? Does it export data cleanly into your Manufacturing Execution System (MES) or internal SQL database architectures? Poor software integration causes massive operational bottlenecks, regardless of optical quality.
Understanding fundamental working principles remains the absolute key to making an informed procurement decision. You must carefully navigate the complex intersections of optical filtering, light source technologies, and continuous versus flash mechanics. Relying purely on superficial marketing brochures invites significant operational risk.
The right solar testing equipment fundamentally removes environmental variables from your data. It ensures strict regulatory compliance and builds unwavering trust with your end consumers. Implementing a verified system accelerates both laboratory R&D cycles and your eventual time-to-market.
Your next step should involve a rigorous internal audit. Document your current testing constraints, target test areas, and facility infrastructure limitations. Armed with these specific metrics, request a technical consultation or a sample spectral output report from a qualified vendor to map your exact requirements accurately.
A: The calibration schedule depends heavily on the chosen technology. Xenon arc systems generally require spectrum checks and recalibration every few hundred operational hours due to rapid bulb degradation. LED systems maintain their calibration baselines much longer. They typically require only standard annual verification to ensure regulatory compliance.
A: Yes, these systems serve multiple industries. Laboratories frequently use them in cosmetics for sunscreen UV protection testing. They are also vital for plastics degradation studies, automotive paint weathering, aerospace material stress testing, and various photobiology applications.
A: The primary differences involve physical scale and light delivery mechanics. Cell simulators feature a small illumination area and often use continuous light for single-junction testing. Panel simulators must cover large surface areas (often exceeding 1m x 2m). They typically utilize flash technology to prevent destructive heat buildup on the large module during measurement.
A: No. A Class AAA rating only guarantees that the specific light source is accurate, uniform, and stable. Overall measurement accuracy also relies heavily on the quality of your I-V electronic measurement unit, precise temperature controls, and the use of proper, low-resistance contacting probes.
