What Is A Solar Simulator? A Complete Guide To Artificial Sunlight For Photovoltaic Testing

Developing and manufacturing photovoltaic (PV) devices presents a fundamental challenge. Natural sunlight is far too variable for baseline testing, benchmarking, or compliance certification. Cloud cover, atmospheric conditions, and changing seasons make repeatable outdoor testing nearly impossible. To solve this, testing facilities rely on specialized infrastructure to replicate the standard solar spectrum, known as AM1.5G, within a controlled environment.

A high-quality Solar Simulator delivers this precise artificial sunlight. It ensures consistent conditions day or night. Selecting the right system requires balancing strict international testing standards against specific cell chemistries. You must account for everything from traditional silicon to emerging perovskites. By understanding these nuances, you can secure accurate I-V curve measurements, validate performance accurately, and streamline product certification. The following guide breaks down everything you need to know about navigating these vital testing solutions.

Key Takeaways

• A solar simulator provides standardized, artificial sunlight essential for accurate, repeatable I-V curve measurements and PV performance validation.

• The shift from legacy Xenon arc lamps to LED-based simulators offers tighter spectral control and dramatically lower maintenance costs.

• Selecting a system requires evaluating three core metrics governed by IEC/ASTM standards: Spectral Match, Spatial Non-Uniformity, and Temporal Instability (the "Class AAA" rating).

• Procurement decisions should be driven by cell size (module vs. cell), emerging material requirements (e.g., organic solar cells), and integration capabilities with existing testing hardware.

The Business Case for Standardized PV Testing: Framing the Problem

Relying on outdoor testing introduces unacceptable margins of error. Natural sunlight changes constantly. Atmospheric aerosols, time of day, and geographical location alter the spectral distribution reaching your test modules. You cannot benchmark a new cell design reliably under these conditions. Using non-calibrated indoor light sources is equally flawed. They fail to replicate the distinct wavelengths that different PV materials absorb. This leads to wildly inaccurate R&D data and skewed production yield calculations. You need absolute precision to validate incremental efficiency gains.

A successful implementation of artificial sunlight eliminates these variables. It provides a stable baseline for all measurements. Industry leaders define testing success through several strict criteria. You must achieve these specific benchmarks to maintain credibility.

1. Predictable I-V Measurements: Your system must generate identical Current-Voltage curves across multiple testing runs.

2. Verified Power Output Ratings: You need absolute confidence in the peak wattage figures printed on the final module datasheet.

3. Global Compliance: The testing environment must align strictly with certification bodies to ensure your panels can be sold internationally.

The financial impact of inaccurate testing is severe. False-positive efficiency ratings destroy commercial credibility. If a batch of modules underperforms in the field compared to lab results, warranty claims skyrocket. Furthermore, failed compliance audits delay your time-to-market. These setbacks allow competitors to capture market share. Investing in rigorous, standardized testing infrastructure protects both your data integrity and your bottom line.

Solution Categories: Evaluating Light Source Technologies

Engineers categorize solar simulation technology primarily by the light source used. Each technology carries distinct advantages and operational quirks. Understanding these differences helps you align the hardware with your specific testing workflow.

Xenon Arc Lamps (The Legacy Standard)

For decades, Xenon arc lamps served as the undisputed industry standard. They produce an excellent continuous spectrum. This spectrum naturally mimics the sun's output, especially in the visible and ultraviolet ranges. The proven track record of Xenon systems gives them immense credibility in academic and legacy manufacturing environments.

However, Xenon technology has notable drawbacks. These lamps generate massive amounts of heat. They require robust cooling systems to prevent cell damage during testing. Xenon bulbs also degrade rapidly. Their spectral output shifts as they age, necessitating frequent recalibration. Furthermore, they present safety hazards. High-pressure bulbs carry explosion risks, and their strong UV output can generate hazardous ozone gas.

LED Solar Simulators (The Modern Approach)

LED technology represents the modern approach to PV testing. These systems use multiple distinct color LEDs mixed together. This allows engineers to sculpt the exact spectrum required. You gain individual wavelength control. You can tune the spectrum independently to test multi-junction cells.

LEDs offer a lifespan exceeding 10,000 hours. They require no warm-up time, allowing instant on/off operation. They also have a minimal thermal footprint, protecting delicate test samples. The main disadvantage is the higher initial capital expenditure. Additionally, creating the perfect spectrum requires complex software algorithms to manage the various LED channels effectively.

Metal Halide & Halogen (Niche/Budget Applications)

Metal halide and halogen lamps serve strictly as niche or low-budget options. They cannot meet the rigorous demands of high-efficiency PV testing. Their spectral match is generally poor compared to Xenon or LED. They serve primarily for basic degradation studies or thermal endurance testing where exact spectral matching matters less.

Decoding Industry Standards: Do You Really Need Class AAA?

Navigating the regulatory framework is critical. Global institutions govern how testing infrastructure must perform. The dominant standards include IEC 60904-9, ASTM E927, and JIS C 8912. These standards define the classification of simulation equipment. They protect buyers and ensure level playing fields across the solar industry.

The classification system relies on three primary pillars. Each pillar is graded as A, B, or C.

• Spectral Match: This measures how closely the artificial light matches the standard AM1.5G spectrum across specific wavelength bands. Class A requires the output in each band to be within 0.75 to 1.25 of the ideal standard.

• Spatial Non-Uniformity: This evaluates the evenness of light distribution across your target testing area. Hot spots can skew I-V curves. Class A requires non-uniformity to be less than 2%.

• Temporal Instability: This tracks the consistency of light intensity over time. A flickering light ruins data logging. Class A limits instability to under 2%.

When a system scores an "A" in all three categories, it earns the prestigious "Class AAA" rating. Some modern LED systems even advertise "Class A+A+A+" to indicate they exceed the minimum Class A thresholds significantly.

However, you must practice pragmatic compliance. Avoid over-engineering your test setup. Class AAA is absolutely mandatory for final product certification and advanced R&D validation. Yet, it might be unnecessary for other tasks. If you are running 1,000-hour light soaking tests or basic degradation studies, a Class ABA or ABB system often suffices. Matching the equipment class to the actual testing requirement saves significant capital.

Standard Classification Chart (IEC 60904-9 Requirements)

Core Evaluation Dimensions for a Solar Panel Simulator

Choosing the right hardware requires deep technical alignment. When evaluating a Solar Panel Simulator, you must match the hardware to your specific cell chemistry. Traditional silicon cells respond quickly to light. They perform well under short millisecond flashes. However, emerging technologies require different handling.

High-efficiency cells, thin films, perovskites, and organic solar cells exhibit strong capacitance effects. They react slowly to light changes. If you flash them too quickly, the I-V curve distorts. You need a system capable of longer flash durations or steady-state illumination. Multi-junction cells demand even more precision. You must tune individual LED channels to match the specific bandgap of each cell layer.

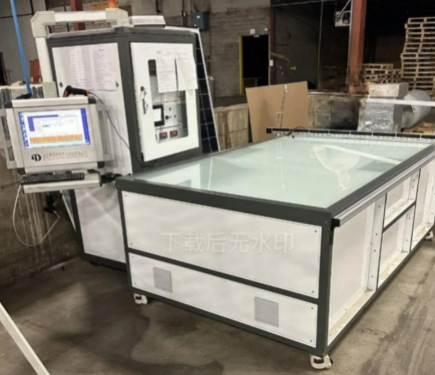

Next, consider the target area and scalability. Small-area simulators generally illuminate 50x50 mm to 150x150 mm zones. These are perfect for R&D cell testing. Full-scale module testing requires large-area simulators. These massive rigs illuminate entire 2-meter panels simultaneously. You must decide whether your workflow demands steady-state illumination or rapid flash testing on a production line.

System integration determines your testing efficiency. Your chosen light source does not operate in isolation. It must communicate flawlessly with other laboratory instruments.

• Source Measure Units (SMUs): The light source must trigger the SMU precisely to sweep the voltage and measure the current.

• Reference Cells: The system needs to integrate with calibrated reference cells to verify irradiance before every test.

• Thermal Control Chucks: For R&D setups, the platform holding the cell must regulate temperature to exactly 25°C to meet Standard Test Conditions (STC).

Finally, evaluate the software. A modern simulator relies heavily on its user interface. The software handles spectrum tuning, coordinates the LED outputs, logs the raw data, and generates compliance reports. An intuitive software suite prevents user error and ensures that your data aligns perfectly with IEC standards.

Implementation Realities and Maintenance Risks

Operating high-precision optical equipment brings ongoing maintenance realities. You must manage calibration drift actively. All light sources degrade over time. The optics cloud, the reflectors tarnish, and the bulbs or LEDs lose intensity. This degradation alters the spectral match and spatial uniformity.

To combat this drift, you require rigorous auditing protocols. You must keep calibrated reference cells on hand. These reference cells act as your baseline truth. Technicians must use them routinely to check the irradiance levels. If the output drifts beyond Class A limits, you must recalibrate the machine immediately. Relying on an uncalibrated machine renders all your testing data invalid.

Thermal management is another critical implementation reality. Xenon-based steady-state systems generate extreme heat. You cannot simply plug them in and start testing. They require substantial HVAC and facility cooling requirements. If the room temperature rises, the cell temperature rises. Testing a PV cell above the standard 25°C artificially lowers its measured efficiency.

You must map out your laboratory's cooling capacity before installation. Some high-power systems require dedicated water-cooling chillers. Even modern LED systems, while much cooler, require adequate ventilation to keep the diode junctions within optimal operating temperatures. Ignoring thermal management leads to rapid equipment failure and compromised test results.

Conclusion

A standardized testing environment is a strategic asset, not just a commodity purchase. Selecting the proper testing infrastructure protects your data integrity and ensures product viability. Whether you are validating new perovskite formulations in a lab or benchmarking silicon modules on a factory floor, precise artificial sunlight is non-negotiable. Without it, you cannot trust your efficiency claims.

Before requesting vendor quotes, map out your exact requirements. Define your PV material type to understand your flash duration needs. Measure your required testing area to choose between cell-level and module-level rigs. Finally, determine your standard compliance needs to avoid overpaying for unnecessary specifications. Clear parameters lead to smarter procurement.

Take the next step by consulting with testing integration specialists. Ask vendors to provide a sample spectrum report for their equipment. Ensure their software can interface with your existing SMUs. Taking a diligent, data-driven approach to your equipment selection will guarantee accurate, repeatable PV testing for years to come.

FAQ

Q: What is the difference between a steady-state and a flash solar simulator?

A: Steady-state models provide continuous, uninterrupted light. They are best for thermal degradation studies and slow-responding cells like perovskites. Flash models provide a high-intensity millisecond pulse. This prevents heat buildup and is ideal for fast, standard production line I-V testing of silicon modules.

Q: Can a solar simulator replicate different global lighting conditions?

A: Yes. Advanced LED systems offer independent wavelength tuning. They can be programmed to replicate AM0 for space applications, AM1.5G for standard terrestrial testing, or specific geographic and time-of-day spectra to simulate real-world field conditions.

Q: How often does a solar simulator need to be calibrated?

A: You should verify irradiance before every major testing batch using a calibrated reference cell. For formal ISO/IEC compliance and auditing purposes, a comprehensive third-party calibration is highly recommended at least once annually.

Q: What is the lifespan of an LED solar simulator compared to Xenon?

A: LED arrays typically operate for 10,000 to over 20,000 hours with minimal spectral shift. In contrast, legacy Xenon bulbs degrade much faster. They often require physical replacement and intensive system recalibration every 500 to 1,000 hours of operation.
