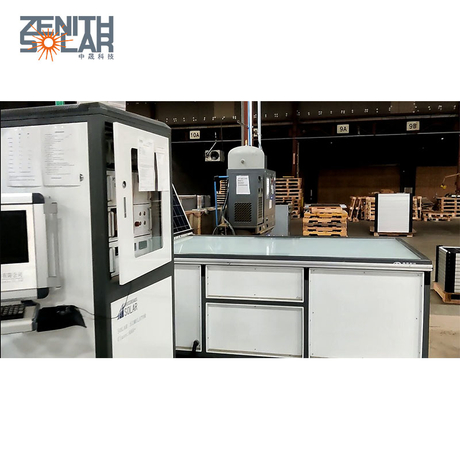

The solar simulator is a device that imitates the solar spectrum, and is used for testing and evaluating the performance of photovoltaic (PV) modules and cells under controlled laboratory conditions. The solar simulator can be used for a variety of applications, including research and development, quality control, and certification testing. The solar simulator is an essential tool for the PV industry, as it provides a reliable and consistent way to measure the performance of PV modules and cells.
How does a solar simulator work?
A solar simulator is a device that mimics the light spectrum and intensity of the sun. It consists of a light source, a filter system, and an optical system. The light source can be a xenon lamp, a halogen lamp, or a LED lamp. The filter system can be a glass filter, a liquid filter, or a digital filter. The optical system can be a lens, a reflector, or a diffuser.
The solar simulator works by emitting a beam of light that passes through the filter system and is then focused onto the PV module or cell. The light intensity and spectrum can be adjusted to match the desired testing conditions. The solar simulator can also measure the current-voltage (I-V) characteristics of the PV module or cell by using a load bank and a data acquisition system.
Types of solar simulators
There are two main types of solar simulators: class A and class B. Class A simulators are high-quality simulators that meet the international standards set by the IEC 60904-9 and the ASTM E 927. Class B simulators are lower-quality simulators that do not meet all the IEC and ASTM requirements.
Class A simulators have a spectral mismatch error of less than 2%, a non-uniformity of irradiance of less than 2%, a temporal stability of irradiance of less than 2%, and a temporal stability of spectrum of less than 2%. Class B simulators have a spectral mismatch error of less than 5%, a non-uniformity of irradiance of less than 5%, a temporal stability of irradiance of less than 5%, and a temporal stability of spectrum of less than 5%.
There are also different types of light sources used in solar simulators. Xenon lamps are the most common type of light source, as they provide a broad spectrum and high intensity. Halogen lamps are less common, but are more stable and have a longer lifespan. LED lamps are becoming more popular, as they are more energy-efficient and have a longer lifespan.
Solar simulators can also be classified according to their application. Research and development simulators are used for testing new PV technologies and materials. Quality control simulators are used for testing the performance of PV modules and cells from different manufacturers. Certification testing simulators are used for testing the performance of PV modules and cells according to international standards.
Applications of solar simulators
Solar simulators are used for a variety of applications, including research and development, quality control, and certification testing. Solar simulators are used in the laboratory to test the performance of PV modules and cells under different conditions, such as temperature, irradiance, and angle of incidence. Solar simulators are also used to test the performance of PV modules and cells under different environmental conditions, such as humidity, dust, and pollution.
Solar simulators are used in the production line to test the performance of PV modules and cells before they are shipped to customers. Solar simulators are also used to test the performance of PV modules and cells after they are installed in the field. Solar simulators are used to test the performance of PV modules and cells under different operating conditions, such as load, voltage, and current.
Solar simulators are used in the research and development of new PV technologies and materials. Solar simulators are used to test the performance of new PV technologies and materials under controlled laboratory conditions. Solar simulators are also used to test the performance of new PV technologies and materials under different environmental conditions, such as temperature, humidity, and irradiance.
Conclusion
The solar simulator is an essential tool for the PV industry, as it provides a reliable and consistent way to measure the performance of PV modules and cells. The solar simulator can be used for a variety of applications, including research and development, quality control, and certification testing. The solar simulator is a valuable tool for the PV industry, as it helps to ensure the quality and performance of PV modules and cells.
