In photovoltaic module manufacturing, the lamination process stands as the ultimate quality-defining step. It acts as the critical bottleneck dictating both overall factory output and long-term panel reliability in the field. Transitioning your facility from manual or R&D production up to GW-scale manufacturing forces leaders to rethink their entire operational approach. You must look far beyond basic machinery specifications to evaluate true equipment reliability, thermal consistency, and actual yield rates under heavy shifts. A poor choice here inevitably leads to severe delamination risks and massive factory line backups. This article provides a comprehensive, vendor-agnostic framework for evaluating modern production equipment. You will discover exactly how to evaluate and shortlist a Solar Panel Laminator based on rigid production realities. We cover the essential thermal technologies, structural scalability paths, and specific buyer criteria required to secure high-yield manufacturing operations.
Key Takeaways
Throughput vs. Quality: Selecting a solar laminator requires balancing theoretical cycle times against the thermal uniformity needed to prevent long-term module delamination.
Scalability Paths: Multi-chamber and stack laminators are essential for high-volume Tier-1 production, while single-chamber units offer flexibility for custom or specialized module runs.
The Business Impact of Lamination in High-Yield Production
Proper lamination dictates whether a solar panel survives its intended twenty-five-year lifespan. This step seals the solar cells between layers of encapsulant and protective glass or backsheets. Flawless encapsulation prevents Potential Induced Degradation (PID). It effectively stops moisture ingress, which otherwise corrodes metallic contacts and degrades power output. Furthermore, uniform pressure distribution during lamination safeguards delicate silicon cells against micro-cracks. When you ensure a perfect seal, you guarantee the structural integrity and electrical performance of the entire module.
Cycle time remains the most prominent throughput bottleneck in modern module manufacturing. Lamination typically requires the longest processing duration of any single step on the line. Because cells must heat, dwell, cure, and cool, this specific stage directly caps your maximum facility output. If your laminating equipment processes one batch every fifteen minutes, your entire upstream stringing and downstream testing lines must pace themselves accordingly. Equipment choices at this stage define your absolute production ceiling.
Many facilities struggle with the harsh yield reality of industrial production. Compromising on lamination standards inevitably leads to higher scrap rates. Substandard machines produce bubbles, cell shifts, and incomplete cross-linking. Every rejected module wastes processed solar cells, tempered glass, and specialized encapsulants. You must prioritize stable, repeatable quality over arbitrary machine specifications. A highly reliable lamination process secures your overall production efficiency and protects your operational output.
Core Technologies Governing the Solar Laminator Process
High-Fidelity Vacuum Systems
Rapid, deep vacuum extraction acts as the foundation of successful encapsulation. Before the heating platen triggers the encapsulant to melt, the vacuum system must evacuate all air from the chamber. This prevents microscopic air bubbles from trapping themselves inside the Ethylene Vinyl Acetate (EVA) or Polyolefin Elastomer (POE) layers. Trapped air causes localized overheating and eventual delamination.
Implementation reality often reveals hidden challenges. Vacuum pump degradation over time stands as a leading cause of sudden defect spikes in established production lines. As pumps wear down, they lose their ability to reach the necessary mbar thresholds quickly. We recommend implementing strict maintenance protocols to preserve vacuum fidelity:
Conduct daily inspections of vacuum pump oil levels and clarity.
Perform weekly leak-rate tests on the main lamination chamber.
Clean all vacuum manifold filters monthly to prevent encapsulant outgassing buildup.
Replace standard rotary vane pump seals every six months to prevent gradual pressure loss.
Heating Plate Precision (Oil vs. Electric)
Heating plate technology separates capable machines from inadequate ones. Most industrial systems utilize thermal fluid (oil-heated) circulation. These systems pump heated diathermic oil through a complex network of channels drilled directly into heavy steel platens. Alternatively, electric heating systems use embedded resistance grids. Oil systems generally provide superior thermal mass, preventing sudden temperature drops when cold glass assemblies enter the chamber.
When evaluating these systems, you must prioritize thermal uniformity over the maximum attainable temperature. Achieving a consistent ±1.5°C to ±2°C across the entire platen ensures every module cures at the exact same rate. Uneven heating causes the encapsulant on the edges to cross-link faster than the center, generating severe internal mechanical stress.
Pressurization & Pin-Lift Mechanisms
Uniform downward pressure relies entirely on flexible silicone diaphragms. Once the chamber achieves a full vacuum, the system vents the upper chamber to atmospheric pressure. The resulting pressure differential forces the silicone diaphragm down onto the glass, pressing the module components together. The material properties of the diaphragm must offer high elasticity and thermal resistance to maintain uniform pressure across the entire module surface.
Modern equipment relies heavily on pin-lift mechanisms. These automated pins raise the module slightly above the hot platen during the initial vacuum phase. This crucial gap prevents the encapsulant from reaching its melting point before the vacuum removes all the air. Once the vacuum sequence completes, the pins retract, dropping the module onto the platen for final heating and pressurization. Without pin-lifts, premature cross-linking ruins the panel.
Categorizing Solar Laminators for Your Facility's Scale
Single-Chamber vs. Multi-Chamber Equipment

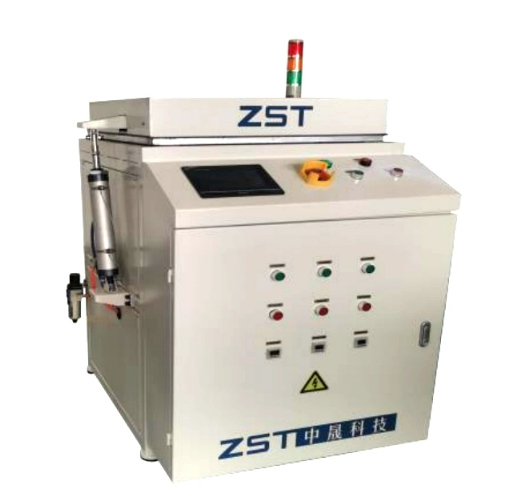

Matching machine architecture to your production scale ensures operational harmony. Single-chamber units execute the entire recipe—heating, vacuum, pressurization, and curing—within one physical space. They represent the best choice for R&D laboratories, Building-Integrated PV (BIPV) manufacturing, or low-volume custom runs. They offer high flexibility for rapid recipe changes and maintain a relatively compact factory footprint.
Multi-chamber and stack laminators are absolutely essential for standard utility-scale panel production. These advanced systems stage the process. Module assemblies move from a dedicated heating/vacuum chamber into a separate curing press, and finally into a cooling press. By separating these steps, a multi-chamber Solar Laminator drastically reduces per-module cycle times, often outputting a finished batch every five minutes instead of fifteen.
Table 1: Architecture Comparison for Production Scales
Feature Dimension
Single-Chamber Architecture
Multi-Chamber Architecture
Primary Application
R&D, Custom BIPV, Low-Volume
Utility-Scale, GW-Level Manufacturing
Process Separation
All steps in one zone
Separated heating, curing, and cooling
Cycle Time Efficiency
Lower (Requires full cycle completion)
High (Overlapping continuous batches)
Recipe Flexibility
Extremely high
Moderate (Optimized for steady runs)
Semi-Automatic vs. Fully Inline Automation
Automation levels dictate your labor requirements and handling consistency. Semi-automatic machines require operators to manually align the module assemblies on the loading conveyor. While suitable for smaller operations, manual handling increases the risk of cell shifting before the vacuum phase.
Fully inline automation integrates the laminator seamlessly into the broader factory environment. These lines utilize robotic loading and unloading systems equipped with specialized suction cups. They feature conveyor buffers that hold queued modules, ensuring the machine never waits for materials. Furthermore, inline systems push finished panels directly into automated trimming stations, removing excess encapsulant without human intervention.
Adaptability to Emerging Module Designs
Equipment flexibility determines your ability to adapt to market changes. Standard monofacial panels utilize a glass front and a polymer backsheet. However, the industry is rapidly adopting Glass-Glass, Heterojunction (HJT), PERC, and thin-film module architectures. Glass-Glass modules carry significantly more thermal mass. They require specialized pressure profiles to prevent glass bowing and highly controlled cooling rates to prevent thermal shock.
HJT cells exhibit extreme temperature sensitivity. They demand low-temperature encapsulants and incredibly precise platen control. If your machinery lacks the software capability to store and execute highly specific, multi-stage pressure and temperature curves, you will struggle to manufacture these emerging designs successfully.
Essential Buyer Evaluation Criteria (Features to Outcomes)
Footprint-to-Output Ratio
Evaluating industrial equipment requires understanding spatial efficiency. Factory floor space represents a premium resource. You must calculate the actual yield per square meter of your facility. A massive stack laminator consumes significant vertical space and requires reinforced flooring, but its output per square meter far exceeds a horizontal array of single-chamber units. Always map the required loading and unloading buffer zones when calculating the true operational footprint.
Sustainable vs. Peak Cycle Times
Vendor specification sheets often present a highly optimistic view of machine capabilities. We advise applying strict skepticism toward advertised "peak" cycle times. A machine might achieve a twelve-minute cycle during a single demonstration run. However, running that same cycle repeatedly over a 24/7 shift often causes the thermal heating elements to lag.
If the platens cannot recover their lost heat fast enough between batches, thermal stability collapses. You must demand data on sustainable cycle times—the speed the machine can maintain continuously without violating the ±2°C thermal uniformity constraint.
Chart 1: Peak vs. Sustainable Output Evaluation Matrix
Metric Category
Peak Spec Sheet Value
Real-World Sustainable Value
Evaluation Impact
Thermal Recovery
Instantaneous
Requires 30-60 seconds between batches
Directly adds to hourly cycle calculations.
Vacuum Attainment
< 1 mbar in 60s
< 1 mbar in 90s (due to filter wear)
Extends the required dwell time for encapsulation.
Uptime Percentage
99%
92% to 95%
Accounts for routine diaphragm and PTFE replacements.
Maintenance & Uptime Constraints
Industrial manufacturing operates under severe continuous strain. You must evaluate the practical ease of replacing heavy-wear parts. The silicone diaphragm degrades over thousands of thermal cycles and requires periodic replacement. If changing the diaphragm takes an entire shift, your production grinds to a halt. Similarly, you must assess how easily technicians can replace the protective Teflon (PTFE) sheets that prevent sticky encapsulant from ruining the machinery.
Thermal oil systems present their own unique risks. You must assess the risk of thermal oil leaks, which pose severe safety hazards and ruin module batches. Evaluate the routing of the diathermic piping and the accessibility of the primary heating elements to ensure maintenance teams can swap them without dismantling the entire chamber.
Implementation Risks and Facility Rollout Considerations
Facility Infrastructure Requirements
Installing industrial-scale equipment demands rigorous facility preparation. You cannot simply place these machines on standard concrete. Facility infrastructure prerequisites include:
Floor Load Bearing: Multi-chamber systems weigh tens of thousands of kilograms. Your foundation must support dynamic loading without settling.
High-Amperage Power: Electric heating grids and massive vacuum pumps draw immense instantaneous current. You require robust three-phase power stability.
Thermal Exhaust: Lamination produces intense heat and chemical outgassing. The facility requires dedicated, high-volume overhead extraction ducting.
Compressed Air Stability: Pneumatic valves and pin-lift mechanisms rely on clean, dry, and highly stable compressed air lines.
Operator Training and the Learning Curve
Hardware capabilities mean nothing without skilled operators. The transition to new machinery always involves a steep learning curve. During early facility rollouts, teams frequently encounter frustrating failures.
Edge Pinching: Incorrect diaphragm tension causes the edges of the module to thin out, pushing encapsulant out of the sides.
Cell Shifting: Applying pressurization too rapidly before the encapsulant fully melts forces the silicon cells to slide out of alignment.
Incomplete Curing: Failing to adjust the dwell time for thicker glass results in soft, uncross-linked centers.
You must insist on comprehensive, OEM-provided training. Operators need to understand how to build and adjust recipe parameters—including temperature curves, vacuum timing, and pressure staging—for entirely different Bill of Materials (BOMs).
Compliance and Safety
Operating high-temperature pressure vessels requires strict adherence to international safety standards. You must verify all relevant certifications, including CE, UL, and ISO standards. Ensure the machine features redundant safety interlocks to prevent operators from opening pressurized chambers. Evaluate the electrical safety cabinets to confirm they meet isolation and emergency-stop standards. Cutting corners on compliance exposes your facility to catastrophic operational risks.
Conclusion
Selecting the right equipment requires matching machine architecture to your specific factory targets. Decision-makers should rigorously align their equipment choices with their exact three-to-five-year production volume targets. You must also account for the specific module types you plan to manufacture, noting that advanced formats like glass-glass require highly adaptable thermal controls.
Your immediate next step involves demanding tangible proof of performance. We strongly recommend requiring a vendor Proof of Concept (PoC) or a dedicated pilot run. You must supply the vendor with your exact module BOM—including your specific cells, glass, EVA/POE, and backsheet. Require them to run these materials through their machinery to verify actual thermal uniformity, defect rates, and sustainable cycle times before you ever issue a Purchase Order. This evidence-based approach guarantees your manufacturing line operates at peak yield.
FAQ
Q: What is the average cycle time of an industrial solar panel laminator?
A: Cycle times depend heavily on the machine architecture and encapsulant. A standard single-chamber unit processing traditional EVA typically takes 12 to 15 minutes per batch. Optimized multi-chamber systems stage the process, effectively outputting a fully laminated batch every 5 to 6 minutes.
Q: How often do silicone diaphragms need replacement in a solar laminator?
A: Diaphragm lifespan varies based on operating conditions, typically lasting between 2,000 and 4,000 cycles. Using aggressive POE encapsulants, running thicker glass-glass modules, or utilizing higher curing temperatures accelerates wear and reduces overall lifespan.
Q: Can the same solar laminator handle both EVA and POE encapsulants?
A: Yes, provided the machine offers fully programmable recipe profiles. POE requires distinct thermal curves and highly precise vacuum settings compared to EVA. The equipment must possess capable software and tight thermal uniformity to switch between the two materials successfully.
Q: What are the primary power and facility requirements for installation?
A: Installations require heavy-duty industrial 3-phase power to handle extreme instantaneous heater draws. Facilities must also provide structural floor leveling for high-load weights, stable compressed air lines, and high-volume overhead thermal fluid venting to manage chemical outgassing.
