Solar Panel Lamination: procedure, advantages and disadvantages

The global shift toward renewable energy has placed solar photovoltaic (PV) technology at the forefront of industrial development. At the heart of manufacturing a durable and efficient solar module lies a critical process known as lamination. This stage is responsible for encapsulating delicate silicon cells within protective layers, ensuring they can withstand decades of exposure to harsh environmental conditions such as UV radiation, moisture, and temperature fluctuations. Without high-quality lamination, a solar panel would degrade within months, losing its ability to convert sunlight into electricity effectively.

Solar panel lamination is the process of bonding multiple layers of a solar module—typically glass, encapsulant (EVA or POE), solar cells, and backsheet—into a single, airtight unit using heat and vacuum pressure within a Solar Panel Laminator. This procedure is essential for protecting the electrical components from environmental damage, ensuring structural integrity, and extending the operational lifespan of the PV module to over 25 years.

As the solar industry moves toward higher efficiency and lower costs, the technology behind the lamination process has undergone significant evolution. Understanding the intricacies of how these layers are fused, the advantages of modern machinery, and the limitations of legacy systems is vital for any B2B stakeholder in the PV manufacturing sector. This article provides a comprehensive deep dive into the technical procedures, the current state of the industry, and the future trends that are shaping the next generation of solar energy solutions.

Table of Contents

Solar Panel Lamination

Solar panel lamination is a thermal-vacuum encapsulation process that permanently bonds the internal components of a solar module together to provide mechanical strength and environmental insulation.

The primary function of lamination is to create a "sandwich" structure where the fragile solar cells are protected from the outside world. This involves the use of specialized polymers, most commonly Ethylene Vinyl Acetate (EVA), which melt and cross-link during the heating process. The result is a transparent, robust, and weather-resistant seal that prevents the ingress of water vapor and oxygen, both of which are primary causes of cell corrosion and power degradation.

From a structural perspective, lamination provides the necessary rigidity for the module. A raw solar cell is thinner than a human hair and extremely brittle; the lamination process surrounds these cells with protective layers that allow the final product to handle wind loads, snow loads, and physical impacts. This structural stability is achieved by precisely controlling the temperature and pressure profiles within the Solar Panel Laminator, ensuring that no air bubbles are trapped inside the module.

In the context of B2B manufacturing, the quality of lamination directly impacts the warranty and bankability of the solar products. High-precision machinery, such as a Laboratory-Specific Small Laminator Machine, is often utilized in R&D settings to test new material combinations before moving to full-scale production. This ensures that the chosen lamination parameters meet the rigorous standards required for international certification.

How is a solar panel laminated?

The procedure involves four distinct stages: loading, vacuuming (de-airing), heating/melting, and cooling, all performed under controlled pressure to ensure a bubble-free encapsulation.

The process begins with the "lay-up" stage. Workers or automated robots stack the components in a specific order: tempered glass on the bottom, a layer of EVA, the interconnected solar cell string, another layer of EVA, and finally the backsheet (usually TPT or KPE). This stack is then fed into the lamination chamber. Once the chamber is sealed, the vacuum pump removes all air from the internal layers. This is a critical step because any residual air pockets would lead to delamination or electrical failure over time.

As the vacuum reaches the required level, the heating plate begins to raise the temperature, typically to between 140°C and 150°C. At this point, the EVA resin melts and starts a chemical reaction known as cross-linking. This transforms the polymer from a thermoplastic to a thermoset material, meaning it will no longer melt if reheated. During this chemical transition, a flexible rubber diaphragm (the "bladder") descends to apply uniform pressure across the entire surface of the module, ensuring a perfect bond between the cells and the glass.

Finally, the module enters the cooling phase. Rapid but controlled cooling is necessary to stabilize the polymer structure and prevent the glass from shattering due to thermal shock. Many modern production lines use a secondary cooling press to increase throughput. For manufacturers looking to refine their production efficiency, utilizing a high-performance Solar Panel Laminator allows for the fine-tuning of these stages to match specific cell technologies, such as TOPCon or HJT.

Technical Parameters for Lamination

Why is the current mainstream lamination process terribly outdated?

The mainstream single-chamber lamination process is considered outdated because it suffers from low throughput, high energy consumption, and an inability to handle the complex requirements of next-generation high-efficiency solar cells.

Traditional laminators operate on a batch-processing logic where the entire heating and vacuum cycle happens in one large chamber. This results in significant "dead time" where the machinery is either heating up or cooling down, rather than actively processing modules. In a high-volume B2B environment, these bottlenecks represent a major cost factor. Furthermore, legacy systems often lack the precision to apply "differential pressure," which is increasingly necessary for thinner, more fragile silicon wafers that are prone to cracking under standard lamination force.

Another major drawback of outdated processes is the uneven heat distribution. Large-format modules (e.g., 210mm cells) require massive lamination areas. Older machines often have temperature variances across the heating plate, leading to inconsistent cross-linking. This creates "soft spots" in the module where moisture can eventually penetrate. In the competitive landscape of PV manufacturing, relying on inefficient equipment can lead to higher scrap rates and lower overall product reliability compared to using a modern high-precision lamination system.

Disadvantages of Legacy Lamination Systems

1. Slow Cycle Times: Traditional batch processing can take 15 to 20 minutes per cycle, limiting daily output capacity.

2. High Maintenance Costs: Older rubber diaphragms and vacuum seals degrade quickly under constant thermal cycling, leading to frequent downtime.

3. Material Waste: Lack of precise control often results in "EVA squeeze-out," where excess resin leaks onto the glass surface, requiring manual cleaning.

4. Energy Inefficiency: Constant reheating of the entire chamber for every batch consumes excessive electricity compared to continuous-flow systems.

Manufacturers aiming for Industry 4.0 standards are finding that these legacy machines cannot integrate with cloud-based monitoring systems. Without real-time data on vacuum levels and temperature curves, it is impossible to implement the predictive maintenance required for modern smart factories.

What is the future when it comes to PV lamination?

The future of PV lamination lies in multi-stack continuous processing, the adoption of POE (Polyolefin Elastomer) materials, and the integration of AI-driven thermal management for zero-defect manufacturing.

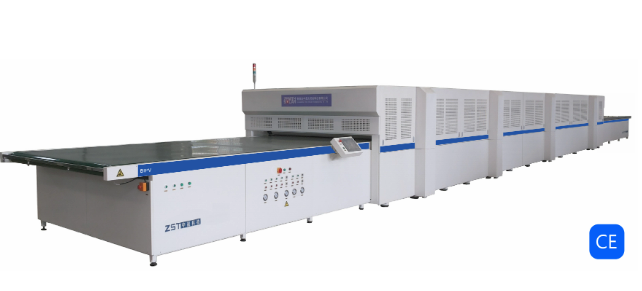

To overcome the bottlenecks of the past, the industry is moving toward multi-layer or "three-chamber" laminators. In this setup, the vacuuming, heating, and cooling stages are separated into different physical sections of the machine. This allows multiple modules to be processed simultaneously in a conveyor-belt fashion, effectively tripling the throughput of a single production line. This shift is essential for the massive scale-up required to meet global net-zero targets.

Material innovation is also driving changes in the lamination hardware. While EVA has been the standard for decades, high-efficiency cells like N-type TOPCon are more sensitive to Potential Induced Degradation (PID). This has led to the rise of POE encapsulants, which offer better moisture resistance and electrical insulation. However, POE requires different processing temperatures and longer vacuum cycles, necessitating more sophisticated Solar Panel Laminator equipment that can provide the versatility to switch between different polymer types seamlessly.

Future Trends in Lamination Technology

• Intensive Automation: Fully robotic loading and unloading systems that reduce human error and physical damage to the glass.

• Smart Thermal Profiles: Use of infrared sensors to monitor the surface temperature of the cells directly, rather than just the heating plate.

• Eco-friendly Encapsulants: Development of recyclable or bio-based resins that reduce the carbon footprint of the manufacturing process.

• Thinner Wafer Compatibility: Advanced pressure-control algorithms that allow the lamination of wafers as thin as 100 microns without breakage.

As we look toward the next decade, the ability to produce high-quality, long-lasting modules at scale will depend on the sophistication of the lamination stage. For enterprises looking to upgrade their facilities, investing in a versatile small-scale or production-grade laminator is the first step toward securing a place in the future of renewable energy.

Conclusion

In summary, solar panel lamination is the "glue" that holds the entire renewable energy industry together. It is a complex, high-stakes procedure that balances chemistry, physics, and mechanical engineering. While the fundamental goals of protection and structural integrity remain the same, the methods used to achieve them are evolving rapidly. From the initial vacuum stage to the final cooling phase, every second and every degree of temperature determines the quality of the final module.

For B2B manufacturers and SEO-focused developers, staying ahead of these technical trends is paramount. By moving away from outdated, inefficient batch processes and embracing multi-stage, AI-assisted lamination, companies can significantly reduce costs while improving the bankability of their solar products. As cell technology continues to push the boundaries of efficiency, the Solar Panel Laminator will remain the most critical piece of equipment in the factory, ensuring that the sun's energy is captured reliably for decades to come.
