The transition to renewable energy has placed solar photovoltaic (PV) technology at the forefront of global industrial development. As manufacturers strive to increase the efficiency and lifespan of solar modules, the technical precision of the production line becomes paramount. Among the various stages of assembly, lamination is arguably the most critical phase, determining the structural integrity and environmental resistance of the final product.
The solar panel lamination process is a high-precision thermal vacuum procedure that bonds multiple layers—including glass, encapsulants (EVA/POE), solar cells, and backsheets—into a single, airtight, and weather-resistant module. This process utilizes a specialized Solar Panel Laminator to apply controlled heat and pressure, ensuring the delicate silicon cells are permanently protected from moisture, mechanical stress, and UV degradation for over 25 years.
Understanding the nuances of this process is essential for EPC contractors, solar distributors, and manufacturers looking to optimize their production yield. This comprehensive guide explores the mechanics of lamination, the technical requirements of modern machinery, and why choosing high-performance equipment is the cornerstone of long-term PV reliability.
Article Structure Overview
Section
Summary
Importance
Explains the protective role of lamination in ensuring the 25-year lifespan of PV modules against environmental factors.
Process Steps
A detailed technical breakdown of the vacuum, heating, and pressure stages involved in bonding solar layers.
Benefits
Highlights how proper lamination improves light transmittance, electrical insulation, and mechanical durability.
Equipment Choice
Focuses on selecting high-grade machinery for consistent production quality and industrial scalability.
Why Solar Panel Lamination Is Important
Solar panel lamination is important because it provides the essential hermetic seal that protects fragile silicon solar cells from oxygen, moisture, and extreme temperatures, thereby preventing oxidation and electrical failure. Without a high-quality lamination cycle, a solar module would succumb to environmental corrosion within months, making the Solar Panel Laminator the most vital piece of equipment in a PV production plant.
The primary function of lamination is to transform a loose "sandwich" of materials into a solid, unified structure. In a standard module, the crystalline silicon cells are incredibly brittle and susceptible to micro-cracks. Furthermore, the metal busbars and interconnects are prone to corrosion if exposed to even trace amounts of humidity. By utilizing a Solar Panel Laminator, manufacturers create a vacuum-sealed environment where the encapsulant (typically Ethylene Vinyl Acetate or EVA) melts and flows around the cells, filling every gap to eliminate air pockets.
From a mechanical perspective, lamination provides the structural rigidity necessary for the panel to withstand wind loads, snow accumulation, and hail impact. The bond created between the tempered glass and the backsheet creates a high-strength composite. If the lamination is uneven or the temperature is not perfectly calibrated, it can lead to delamination—a failure where the layers peel apart, allowing water ingress and leading to catastrophic short circuits.

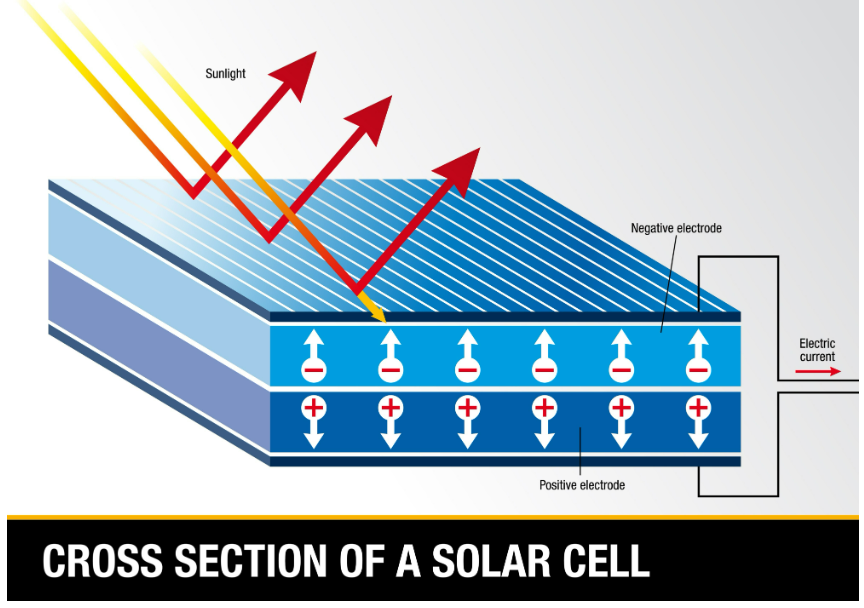

Furthermore, the optical efficiency of a solar panel depends on the quality of the lamination. The process ensures that the encapsulant achieves maximum transparency and stays in permanent contact with the glass and the cells. This minimizes the reflection of sunlight at internal interfaces, allowing more photons to reach the semiconductor material. For research and development purposes, using a small-scale laminator for testing allows engineers to verify these material bonds before moving to mass production.
The Solar Panel Lamination Process
The Solar Panel Lamination Process consists of three primary stages—evacuation (vacuum), heating (melting), and pressing (bonding)—performed within a controlled chamber to ensure the cross-linking of the encapsulant material. This complex thermal cycle typically lasts between 15 to 20 minutes and requires precise synchronization of temperature and pressure to avoid cell shifting or bubble formation.
1. The Preparation and Loading Stage

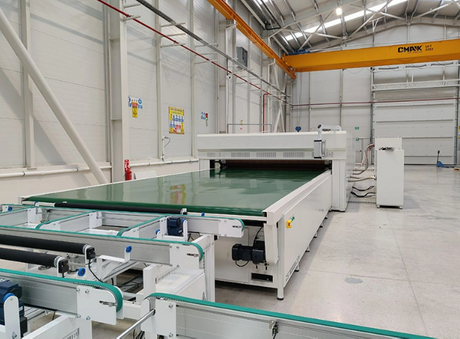

Before entering the machine, the solar module layers are stacked in a specific order: Glass, EVA, interconnected Solar Cells, another layer of EVA, and finally the Backsheet (TPT/KPE). This assembly is placed onto the conveyor belt of the Solar Panel Laminator. Cleanliness is paramount at this stage, as any dust or debris trapped within the layers will be permanently visible and may cause "hot spots" during the panel's operation.
2. The Vacuum and Evacuation Phase
Once the assembly is inside the laminator chamber, the lid closes and a powerful vacuum pump removes all air from the chamber. This is critical because air bubbles (voids) trapped inside the module can expand under the heat of the sun, causing the layers to separate. The vacuum stage ensures that when the EVA begins to melt, there are no gas pockets to interfere with the adhesion.
3. Heating and Polymerization (Cross-linking)
As the vacuum reaches its target, the heating plate begins to raise the temperature of the module, typically to between 140°C and 150°C.
Melting: The EVA transitions from a solid sheet to a viscous liquid.
Wetting: The liquid EVA flows around the cells and the ribbons.
Chemical Reaction: The heat triggers a chemical cross-linking process, where the polymer chains in the EVA link together to form a permanent, rubbery, and transparent solid that will not re-melt.
4. Pressure Application and Cooling

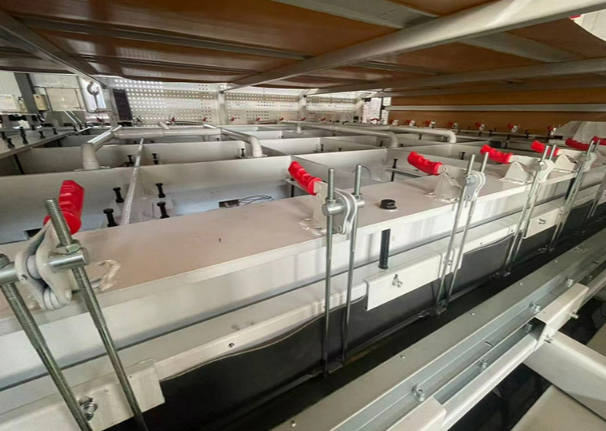

While the EVA is in its liquid state, a flexible rubber diaphragm (or "bladder") inside the Solar Panel Laminator applies uniform pressure to the back of the module. This forces the layers together, ensuring total contact and consistent thickness. After the prescribed "cook time," the module is moved to a cooling station. Controlled cooling is necessary to prevent the glass from shattering and to ensure the internal stresses within the module are neutralized.
Process Phase
Temperature Range
Duration
Key Objective
Vacuum
30°C - 80°C
3-5 Mins
Remove air and moisture
Heating/Melting
80°C - 130°C
5-7 Mins
Achieve liquid state for EVA
Curing/Cros-slinking
140°C - 150°C
8-12 Mins
Permanent chemical bonding
Cooling
150°C - 50°C
5-10 Mins
Structural stabilization
Benefits of the PV Module Lamination Process
The benefits of the PV module lamination process include enhanced mechanical strength, superior electrical insulation, and long-term protection against UV radiation and moisture ingress, which collectively ensure the module meets international safety and performance standards. Proper lamination is the "insurance policy" for the solar cell, transforming a fragile semiconductor into a durable energy-generating asset.
1. Long-Term Weather Resistance
The primary benefit is the creation of a moisture-proof barrier. Silicon solar cells are highly sensitive to humidity, which causes the silver metallization to oxidize and lose conductivity. A high-quality cycle in a Solar Panel Laminator ensures that the edges of the panel are perfectly sealed. This allows the modules to operate in diverse climates, from humid tropical regions to freezing alpine environments, without loss of power output.
2. Improved Optical Performance
By eliminating the air-to-glass and air-to-cell interfaces, lamination reduces the refractive index mismatch. The encapsulant acts as an optical coupling agent, allowing more light to pass through the glass and into the solar cells. This increases the total amperage the panel can produce. Using a professional PV lamination system ensures that the encapsulant layer is uniform in thickness, preventing optical distortion.
3. Electrical Insulation and Safety
Lamination provides high dielectric strength, insulating the high-voltage solar cell circuit from the external environment and the aluminum frame. This is essential for preventing Leakage Current and Potential Induced Degradation (PID). The cured EVA and backsheet act as a robust insulator, protecting installers and maintenance crews from electric shocks and ensuring the system's overall safety compliance.
4. Mechanical Dampening
Solar panels are often subjected to vibrations during transport and wind-induced "fluttering" once installed. The lamination process embeds the cells in a flexible, shock-absorbing polymer. This cushioning effect drastically reduces the occurrence of micro-cracks, which are the leading cause of hidden performance degradation in older or poorly manufactured solar arrays.

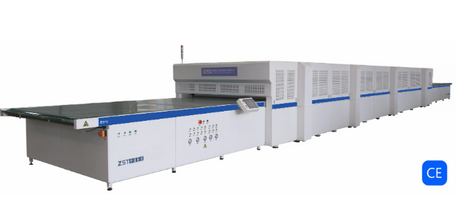

Choose Solar Panel Laminators From ZENITHSOLAR
Choosing Solar Panel Laminators from ZENITHSOLAR ensures your production line benefits from industry-leading thermal uniformity, advanced vacuum control, and robust structural engineering designed for 24/7 industrial operation. Our machinery is engineered to handle various module sizes and chemistry types, providing the flexibility and reliability required to stay competitive in the rapidly evolving PV market.
When selecting a Solar Panel Laminator, the most critical factor is the temperature uniformity across the entire heating plate. If one corner of the plate is 5 degrees cooler than the center, the EVA in that area will not cross-link correctly, leading to localized delamination and warranty claims. Our equipment utilizes high-precision heating elements and oil-circulating or electric heating systems to maintain a tolerance of less than ±1.5°C across the working surface.
For manufacturers focusing on specialized or custom modules, such as BIPV (Building Integrated Photovoltaics) or high-efficiency N-type cells, the flexibility of the equipment is key. Our precision-engineered laminating machines allow for fine-tuned adjustments to the vacuum pressure and heating ramp rates. This prevents "cell shifting," a common defect where cells move out of alignment during the pressure stage, ruining the aesthetic and electrical balance of the panel.
Furthermore, we prioritize operational efficiency and "uptime." Our laminators are built with heavy-duty vacuum pumps and durable, easy-to-replace silicone diaphragms.
Automation Integration: Our machines easily interface with robot loading and unloading systems for fully automated lines.
Energy Efficiency: Advanced insulation materials reduce heat loss, lowering the per-unit electricity cost of production.
Data Logging: Integrated PLC systems record the thermal profile of every batch, providing full traceability for quality control and certification purposes.
Whether you are setting up a new 500MW factory or upgrading an existing R&D facility with a lab-scale solar laminator, the reliability of your equipment determines the quality of your brand. By investing in a high-performance Solar Panel Laminator, you ensure that every module leaving your facility is built to survive and thrive for decades.
Conclusion
The solar panel lamination process is a sophisticated blend of chemistry and mechanical engineering. It is the defining moment in the manufacturing chain where individual components become a durable, high-performance solar module. By mastering the variables of vacuum, temperature, and pressure, manufacturers can produce panels that withstand the harshest environments while maintaining peak energy efficiency. Selecting the right Solar Panel Laminator is not just a capital investment—it is a commitment to the quality and longevity of the global renewable energy infrastructure. High-quality lamination ensures that the solar revolution is built on a foundation of reliability and excellence.
