The transition toward renewable energy is centered on the efficiency and longevity of photovoltaic (PV) modules. As the global demand for sustainable power increases, manufacturers are focusing on the critical assembly stages that determine how well a solar panel performs over a 25-year lifespan. Among these stages, lamination stands out as the most vital process, acting as the protective seal that shields sensitive silicon cells from the unforgiving outdoor environment.
Solar panel lamination is the process of encapsulating solar cells between layers of protective materials, typically glass and a backsheet, using an encapsulant like EVA or POE. This procedure, performed by a professional Solar Panel Laminator, ensures structural integrity, electrical insulation, and permanent protection against moisture and mechanical stress.
Understanding the nuances of this "Solar Energy Journey" requires a deep dive into the machinery, materials, and thermal dynamics involved. In this comprehensive guide, we will explore why lamination is the backbone of solar manufacturing, the technical specifications of modern laminating equipment, and how high-quality encapsulation drives the ROI of solar projects worldwide.
Article Overview
Section
Summary
What is Solar Panel Lamination
A foundational definition of the encapsulation process and its role in PV module assembly.
The Role of a Solar Panel Laminator
An analysis of the machinery required to achieve vacuum, heating, and pressure for perfect bonding.
Critical Components in the Lamination Process
A detailed look at the layers involved, including glass, EVA, solar cells, and backsheets.
Benefits of High-Quality Lamination
Discussing how superior lamination prevents delamination, PID, and moisture ingress.
Step-by-Step Lamination Workflow
A technical breakdown of the heating, vacuuming, and cooling cycles in a production line.
Choosing the Right Lamination Equipment
Factors to consider when selecting industrial or lab-scale machinery for different production volumes.
Common Challenges and Solutions
Addressing issues like bubbles, misalignment, and uneven pressure distribution during the cycle.
What is Solar Panel Lamination
Lamination is the thermal-vacuum process used to bond the various layers of a solar panel into a single, cohesive, and weather-resistant unit. This stage is the "make or break" moment in solar manufacturing. Before lamination, a solar panel is merely a fragile sandwich of loose components: a sheet of tempered glass, a layer of Ethylene Vinyl Acetate (EVA), the interconnected string of solar cells, another layer of EVA, and finally a protective backsheet. Without the chemical cross-linking that occurs during lamination, these components would remain vulnerable to air gaps, moisture, and physical displacement.
The process involves placing this "sandwich" into a specialized chamber where air is evacuated to create a vacuum. Simultaneously, the temperature is raised to approximately 140°C to 150°C. At this temperature, the EVA melts and flows around the cells, filling every microscopic void. Once the air is gone and the EVA has liquefied, pressure is applied to ensure a flat, bubble-free finish. This transforms the assembly from a collection of parts into a durable module capable of withstanding decades of hail, wind, and rain.
For research facilities and small-scale testing, achieving this level of precision requires specialized tools. Many developers utilize a laboratory specific small laminator machine to simulate industrial conditions on a smaller scale, ensuring that new cell designs or encapsulant materials can meet the rigorous standards of the energy sector.
The Role of a Solar Panel Laminator

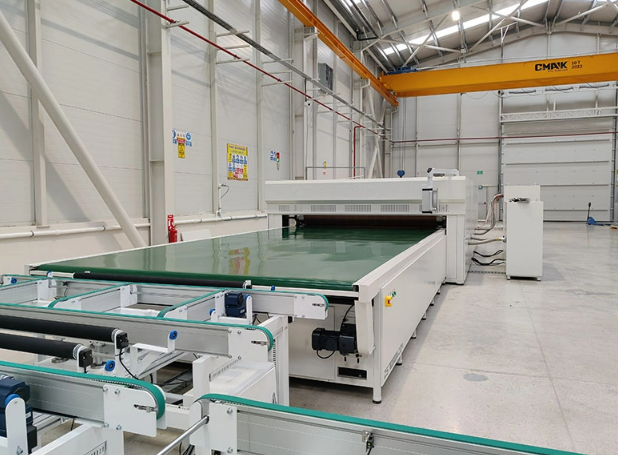

The Solar Panel Laminator is a high-precision machine designed to provide a controlled environment where heat, vacuum, and mechanical pressure interact to encapsulate PV cells.
A professional-grade laminator consists of two main chambers separated by a flexible rubber diaphragm. The lower chamber contains the heating plate where the solar panel rests. The role of the machine is to manage the "lamination recipe"—a specific sequence of time, temperature, and pressure. If any of these variables are off by even a small margin, the resulting panel may suffer from "delamination" years down the line, leading to total system failure.
Modern industrial laminators are often multi-stage systems. The first stage handles the heating and vacuum, while the second stage manages the cooling process under pressure. This prevents the glass from warping and ensures the EVA sets correctly. In the context of large-scale manufacturing, these machines are integrated into fully automated lines where throughput and consistency are the primary KPIs.
The sophistication of this equipment allows for the processing of various module types, including glass-glass, glass-backsheet, and even flexible thin-film modules. By maintaining uniform temperature distribution across the entire surface area, the machine ensures that the solar cells are not subjected to thermal stress, which could cause micro-cracks in the fragile silicon wafers.
Critical Components in the Lamination Process
The success of lamination depends on the chemical and physical compatibility of five primary layers: glass, encapsulant (front), solar cell string, encapsulant (back), and the backsheet.
Each component serves a distinct purpose:
Tempered Glass: Provides the front structural strength and high light transmittance.
Encapsulant (EVA/POE): The "glue" that melts to provide adhesion and electrical insulation.
Solar Cells: The heart of the panel, interconnected by copper ribbons.
Backsheet: A multi-layer polymer film that provides UV protection and moisture resistance.
During the heating phase, the encapsulant undergoes a process called cross-linking. This is a chemical reaction that turns the thermoplastic EVA into a permanent, rubbery material that will not melt again even under high summer heat. This transition is critical for maintaining the position of the cells and preventing them from shifting or touching the glass directly.
Furthermore, in specialized electronics or power-integrated solar solutions, the precision of these components is even more vital. For instance, manufacturers working on integrated systems often require high-grade server power solutions to maintain the stability of their automated production lines, ensuring that the heating elements in the laminator do not fluctuate during the critical cross-linking phase.
Benefits of High-Quality Lamination
High-quality lamination provides the essential protection needed to ensure a solar panel reaches its 25-year warranty period by preventing environmental degradation.
Moisture Prevention: Water is the enemy of solar cells. Even a tiny amount of moisture can cause corrosion on the silver busbars and copper ribbons. Proper lamination creates a hermetic seal that keeps humidity out.
Electrical Insulation: The encapsulant acts as a dielectric barrier, preventing electrical leakage from the cells to the metal frame of the panel, which is a major safety requirement.
Mechanical Durability: By bonding the cells to the glass and backsheet, the panel becomes a rigid structure capable of supporting heavy snow loads and resisting high-velocity wind.
Optical Clarity: High-quality EVA ensures maximum light reaches the cells by minimizing reflection at the interfaces between the different layers.
Without a reliable Solar Panel Laminator, the risk of Potential Induced Degradation (PID) increases significantly. PID occurs when leakage currents flow through the encapsulation material, leading to a massive drop in power output. Robust lamination practices, combined with high-quality POE (Polyolefin) or EVA, are the primary defenses against this phenomenon.
Feature
Standard Lamination
High-Quality Lamination
Adhesion Strength
40-60 N/cm
>70 N/cm
Cross-linking Rate
<70%
75% - 85%
Bubble Presence
Possible at edges
Zero bubbles
Service Life
10-15 years
25+ years
Step-by-Step Lamination Workflow
A standard lamination cycle consists of four distinct phases: loading, vacuum/heating, pressing, and cooling, typically lasting between 12 to 18 minutes.
The workflow begins with the "lay-up" where the materials are stacked. This stack is then moved into the laminator. In the first phase, the vacuum pump removes all air from the chamber. This is crucial because any trapped air will expand when heated, creating bubbles that block sunlight and trap moisture. Once the vacuum is established (usually below 100 Pa), the heating plate begins to transfer energy to the module.
As the temperature reaches the melting point of the EVA, the "pressing" phase begins. The rubber diaphragm in the top chamber is pressurized, pushing down on the solar panel assembly. This force ensures the molten EVA flows into the gaps between the cells and the busbars. The timing here is critical; pressing too early can crack the cells, while pressing too late can result in poor adhesion.
Finally, the module is moved to the cooling stage. Rapid but controlled cooling is necessary to stabilize the cross-linked polymers. In high-volume factories, this is done in a separate cooling press to keep the main heating chamber free for the next batch. This systematic approach ensures that every laminated solar module meets the international IEC 61215 standards for durability and performance.
Choosing the Right Lamination Equipment
Selecting the appropriate Solar Panel Laminator involves balancing production capacity, heating technology, and the specific size of the modules being produced.
When evaluating equipment, manufacturers must consider the following:
Heating Uniformity: The temperature variance across the plate should be less than ±2°C. Uneven heating leads to localized under-curing or over-curing of the EVA.
Vacuum Efficiency: The speed at which the machine can reach high vacuum levels directly impacts the cycle time and the elimination of bubbles.
Automation Level: Semi-automatic machines are suitable for small batches or R&D, while fully automatic "inline" laminators are necessary for GW-scale production.
For those in the development phase or those creating niche products like portable solar chargers or IoT sensors, industrial-sized machines are often overkill. A compact laminating solution provides the flexibility to test different material combinations without the high overhead of a massive production line. These smaller units often feature the same advanced PLC controls and vacuum systems found in their larger counterparts, allowing for a seamless transition from lab to factory.
Furthermore, the reliability of the control systems in these machines is paramount. Stable electrical power components within the machine's cabinet ensure that the PLC and sensors provide accurate feedback, preventing "thermal runaway" or vacuum failures that could ruin an entire batch of panels.
Common Challenges and Solutions
The most frequent issues in solar lamination include bubble formation, cell shifting, and "edge squeeze-out," all of which can be mitigated through precise machine calibration.
Bubbles are typically caused by insufficient vacuum time or contaminated materials. If moisture is present in the EVA before lamination, it will vaporize and create small white spots. The solution is to ensure materials are stored in a humidity-controlled environment and that the vacuum stage of the cycle is long enough to outgas all volatiles.
Cell shifting occurs when the pressure is applied too forcefully while the EVA is in a highly fluid state. To solve this, manufacturers use "tacking" techniques or adjust the pressure ramp-up speed of the diaphragm. Edge squeeze-out, where EVA leaks out from the sides of the glass, is usually a sign of excessive temperature or pressure. By fine-tuning the "recipe" on the Solar Panel Laminator, these physical defects can be eliminated.
Summary of Solutions
Problem: Bubbles -> Solution: Extend vacuum time and check seal integrity.
Problem: Low Cross-linking -> Solution: Increase heating duration or temperature set-point.
Problem: Delamination -> Solution: Clean glass surfaces and verify EVA shelf-life.
Conclusion
The journey of solar energy from a photon to a usable electron depends heavily on the integrity of the solar panel itself. Lamination is not just a manufacturing step; it is the fundamental process that grants a solar module its lifespan and reliability. By utilizing high-quality Solar Panel Laminator technology, manufacturers can ensure that their products survive the harshest environments on Earth.
From the selection of raw materials like high-clarity EVA and durable backsheets to the implementation of precise thermal-vacuum cycles, every detail matters. Whether you are operating a global manufacturing hub or utilizing a specialized small-scale machine for R&D, the goal remains the same: a perfect, bubble-free bond that protects the future of clean energy. As the industry evolves toward higher-efficiency cells like TOPCon and Perovskites, the lamination process will continue to adapt, remaining the silent guardian of the world's solar infrastructure.
