Discover the Advantages and Versatile Uses of Lamination Machines

In the modern industrial landscape, the protection and structural integrity of delicate components are paramount. Lamination technology has evolved from simple document preservation to a sophisticated manufacturing process essential in sectors ranging from renewable energy to high-end electronics. The process involves bonding multiple layers of material using heat, pressure, or adhesives to create a composite structure that offers superior durability, insulation, and environmental resistance. As global industries pivot toward sustainable energy and advanced hardware, the role of high-precision lamination equipment has become a cornerstone of quality assurance and product longevity.

Lamination machines offer a versatile solution for enhancing material durability and functional performance, with specialized systems like the Solar Panel Laminator providing the critical vacuum-thermal bonding required for photovoltaic cell protection. These machines ensure airtight sealing, moisture resistance, and mechanical strength across various applications, including solar energy, electronics, and industrial packaging.

Understanding the nuances of lamination technology is vital for B2B procurement managers and engineers looking to optimize their production lines. This guide explores the mechanical principles, diverse industrial applications, and the strategic advantages of integrating advanced lamination systems into your workflow. From large-scale industrial units to specialized laboratory-specific small laminator machines, we will examine how this technology drives efficiency and product excellence.

Article Overview

Core Principles of Lamination

The fundamental process of lamination involves the application of controlled heat and pressure to bond multiple layers of substrates into a single, high-performance composite material.

At its heart, a lamination machine functions by activating a bonding agent—often a thermal film or an ethylene-vinyl acetate (EVA) sheet—to fuse layers such as glass, silicon cells, or plastic films. The machine must maintain precise temperature uniformity across the entire surface area to prevent warping or delamination. In advanced industrial settings, this process is conducted within a vacuum chamber to eliminate air bubbles, ensuring a perfect, void-free bond that is essential for the longevity of the final product.

The mechanical design of these machines often includes heavy-duty heating plates and synchronized pressure rollers. The synergy between these components determines the "peel strength" and the overall quality of the laminate. Whether the machine is a large-scale industrial model or a compact lamination unit for testing, the consistency of the thermal distribution remains the most critical variable in the manufacturing cycle.

Furthermore, modern lamination technology integrates sophisticated cooling phases. Once the layers are bonded at high temperatures, a controlled cooling process sets the adhesive and stabilizes the material structure. This prevents thermal shock and ensures that the finished product meets the rigorous tolerance standards required in high-tech B2B industries, such as telecommunications and power distribution.

The Role of Solar Panel Laminators

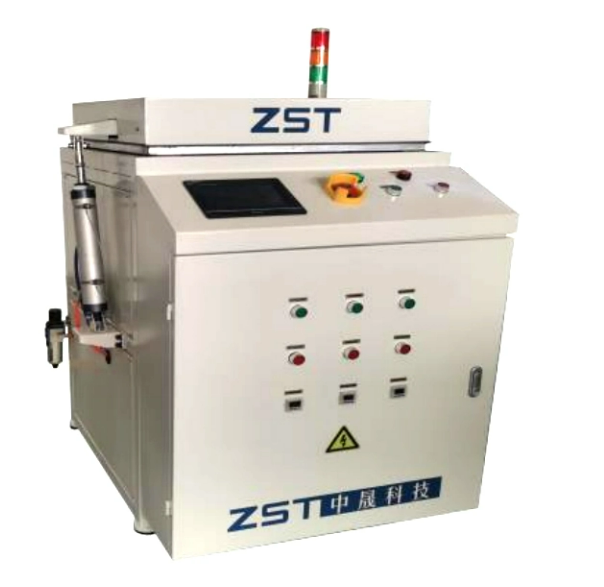

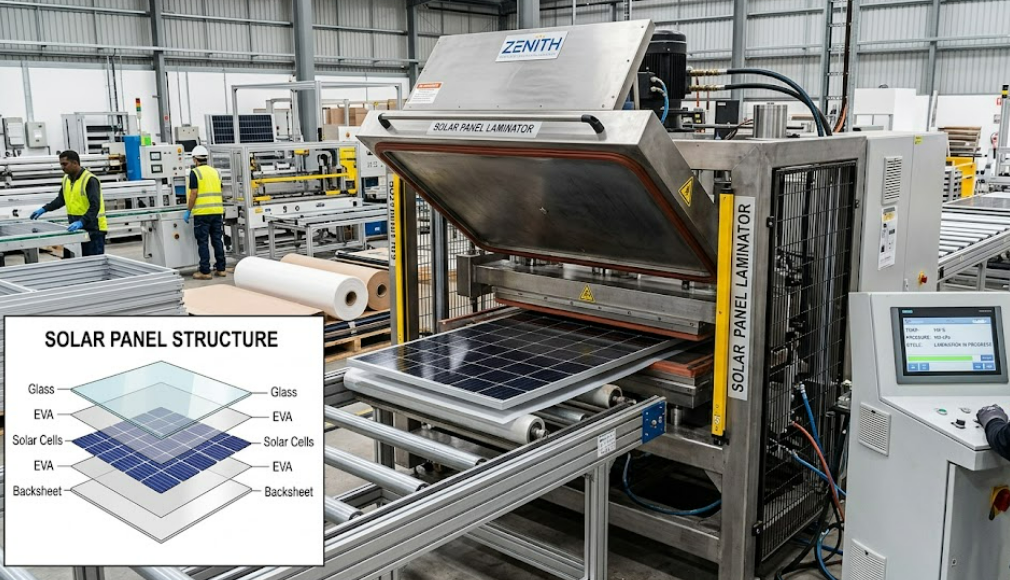

A Solar Panel Laminator is a specialized vacuum-thermal system designed to encapsulate photovoltaic cells between layers of glass and protective backsheets to ensure decades of outdoor durability.

In the renewable energy sector, the Solar Panel Laminator is perhaps the most critical piece of equipment in a module assembly line. It performs the complex task of melting the EVA or POE (Polyolefin) encapsulant and pressing it around the fragile solar cells. This process creates an airtight, moisture-proof seal that protects the delicate semiconductor material from rain, UV radiation, and physical impact. Without high-quality lamination, a solar module would fail within months of exposure to the elements.

The technical requirements for a Solar Panel Laminator are immense. The machine must provide a deep vacuum to remove all oxygen and moisture from the module stack before the heating cycle begins. This prevents oxidation of the silver busbars and ensures maximum light transmission through the glass. The pressure must be applied evenly to avoid cracking the ultra-thin silicon wafers, which are often only 160 micrometers thick.

The following table compares the typical operational parameters of different Solar Panel Laminator types:

For facilities focusing on research and development, using a highly precise small laminator allows engineers to test new encapsulant materials or cell designs without consuming the energy and floor space of a full-size production line. This modular approach is essential for staying competitive in the rapidly evolving solar market.

Key Industrial Advantages

The primary advantages of using professional lamination machines include superior environmental protection, increased mechanical strength, and the ability to combine different material properties into a single product.

1. Extended Product Lifespan

By creating a hermetic seal, lamination prevents the ingress of moisture, salt spray, and atmospheric pollutants. In industries like marine electronics or outdoor power systems, this barrier is what allows components to function in harsh environments for 25 years or more. The use of a Solar Panel Laminator is a perfect example of this, as it transforms fragile glass and silicon into a ruggedized power plant capable of withstanding hail and wind loads.

2. Enhanced Structural Rigidity

Lamination adds significant stiffness to materials without significantly increasing their weight. This is particularly useful in the construction and automotive sectors, where laminated safety glass or carbon-fiber composites are used to provide high strength-to-weight ratios. The bonding process ensures that even if one layer fails, the overall structure remains intact, which is a critical safety feature in modern engineering.

3. Electrical Insulation and Safety

In the production of printed circuit boards (PCBs) and power modules, lamination provides necessary dielectric barriers. By layering insulating films between conductive copper tracks, manufacturers can create complex multi-layer electronics that are both compact and safe. This is especially relevant when building high-density hardware such as industrial server power solutions, where thermal management and electrical isolation must be perfectly balanced.

4. Aesthetic and Surface Quality

Beyond functionality, lamination provides a consistent, high-quality finish. It can protect printed surfaces from abrasion and chemicals while offering various textures, such as matte, gloss, or anti-reflective coatings. This versatility makes it a preferred choice for high-end consumer electronics and architectural finishes where visual appeal is as important as durability.

Diverse Applications Across Sectors

Lamination machines find applications in a wide array of sectors, from producing the glass used in skyscrapers to the encapsulation of the most sensitive aerospace electronics.

In the automotive industry, lamination is used to create windshields that do not shatter upon impact. By sandwiching a layer of Polyvinyl Butyral (PVB) between two sheets of glass, manufacturers ensure that the glass remains adhered to the plastic film even if it breaks. This same principle is applied to security glass used in banks and government buildings, where multiple layers are laminated together to create bullet-resistant barriers.

The electronics industry relies heavily on lamination for the production of flexible displays and multi-layer motherboards. As devices become smaller, the precision of the lamination process must increase. High-pressure vacuum laminators are used to bond thin-film transistors (TFTs) and OLED layers, protecting them from oxygen which can degrade organic materials. In high-power applications, such as centralized server power units, lamination ensures that internal components are shielded from vibration and thermal stress.

Furthermore, the textile and packaging industries utilize lamination to create waterproof fabrics and multi-barrier food packaging. By bonding aluminum foil with plastic films and paper, companies can create packaging that keeps food fresh for months without refrigeration. This "functional layering" is the core of modern material science, allowing engineers to design products that are greater than the sum of their individual parts.

Technical Features to Consider

When selecting a lamination machine, technical specifications such as vacuum degree, temperature uniformity, and automation capabilities are the most important factors to evaluate.

A high-performance Solar Panel Laminator must feature a robust vacuum system capable of reaching pressures below 100 Pa within a few minutes. This rapid evacuation is necessary to maintain high throughput in a B2B manufacturing environment. Additionally, the heating plate should have a temperature deviation of less than ±2°C across its entire surface. Uneven heating can lead to "hot spots" in solar modules, which significantly reduces their energy conversion efficiency over time.

Control systems have also seen a massive leap in technology. Modern machines are equipped with PLC (Programmable Logic Controller) systems and HMI (Human-Machine Interface) touchscreens that allow operators to save hundreds of different "recipes" for various material combinations. This flexibility is vital for factories that produce a wide range of products, from standard PV modules to specialized small-scale laminated components.

Another critical feature is the conveyor system. In automated lines, the laminator must seamlessly integrate with loading and unloading robots. The speed and precision of these belts ensure that the stack of materials remains perfectly aligned as it enters the vacuum chamber. For companies providing power infrastructure for data centers, the reliability of these automated systems is what allows for the high-volume production of standardized components.

Maintenance and Operational Efficiency

Regular maintenance of lamination equipment, focusing on vacuum seal integrity and heating plate calibration, is essential for ensuring consistent product quality and minimizing costly downtime.

The rubber diaphragm is one of the most frequently replaced consumables in a Solar Panel Laminator. Because it is subjected to repeated cycles of high heat and extreme stretching, it eventually develops micro-cracks or loses its elasticity. A proactive maintenance schedule involves inspecting the diaphragm every 500 to 1,000 cycles and keeping spare parts in stock to prevent long-term production halts. Cleaning the heating plates is equally important, as any residual EVA or adhesive can create bumps that might crack the next module processed.

Operational efficiency is also driven by energy management. Industrial lamination is an energy-intensive process, and modern machines utilize improved insulation and heat-recovery systems to reduce power consumption. B2B companies should look for equipment that offers "eco-modes" or intelligent standby settings. For large-scale operations, optimizing the lamination cycle time—even by just 30 seconds—can result in thousands of additional units produced per month.

Finally, software updates for the PLC systems should not be overlooked. As material sciences advance, the optimal pressure and temperature curves may change. Keeping the machine's software up to date ensures that it can handle the latest encapsulants and backsheet technologies. Whether you are operating a full-scale factory or a specialized laboratory laminator, the combination of mechanical care and technological updates is the key to long-term success.
