Why Use Laser Cutting Machines In Photovoltaic Manufacturing?

Margin pressures constantly challenge modern photovoltaic (PV) manufacturing. Module efficiency and production yield ultimately drive your profitability in a highly competitive global market. To maximize power output, the industry recently shifted from standard full-cell layouts to half-cut, third-cut, and shingled architectures. These advanced designs dramatically reduce resistive losses by splitting the electrical current. They boost overall panel efficiency and improve shade tolerance.

However, this design evolution creates a severe production bottleneck. Relying on traditional mechanical dicing to separate these smaller cells severely restricts yield. Mechanical tools inevitably damage fragile silicon, dragging down your profit margins. This critical flaw necessitates the rapid adoption of advanced, non-contact laser equipment. We will explore exactly why replacing outdated mechanical saws transforms your assembly process. You will learn about the core commercial advantages, crucial implementation risks, and essential equipment evaluation criteria.

Key Takeaways

• Transitioning to a non-contact laser scribing machine eliminates the mechanical stress that causes micro-cracks in fragile silicon wafers.

• Upgrading to a laser solar cell cutting machine significantly reduces kerf loss, preserving usable active cell area.

• While initial capital expenditure (CapEx) is higher than traditional wire saws, the reduction in consumable costs and broken wafer rates accelerates total ROI.

• Procurement evaluation must prioritize laser pulse duration (e.g., nanosecond vs. picosecond) and machine vision alignment capabilities.

The Production Bottleneck: Why Traditional Cutting Limits PV Module Yield

Traditional cell separation relies heavily on mechanical methods, primarily diamond wire loops. This outdated approach utilizes physical abrasion. It physically grinds through the silicon to divide the semiconductor wafer. Unfortunately, this brute-force method introduces immense mechanical stress. Silicon behaves as an incredibly brittle material, especially as manufacturers push wafer thicknesses down toward 130 microns. Applying direct physical force often causes immediate edge chipping. Downstream cell separation demands high precision and exceptionally gentle handling. Mechanical tools simply cannot guarantee defect-free edges while maintaining rapid production speeds.

Microscopic edge defects might not trigger immediate quality control failures on the factory floor. Instead, they act as a hidden threat. These tiny fissures inevitably propagate during the lamination process. Heat and vacuum pressure squeeze the encapsulant materials, forcing the invisible cracks to expand. Thermal cycling in outdoor field deployment worsens them further. Over time, these expanding cracks isolate specific active cell regions. They create harmful electrical hot spots. Ultimately, this structural failure leads to premature module degradation and triggers costly long-term warranty claims.

We must also address strict material constraints. Mechanical cutting tools possess inherent physical thickness. A diamond wire physically grinds away silicon equal to its own diameter. We call this physical material waste kerf loss. In high-volume solar manufacturing, every single millimeter dictates profitability. Kerf loss directly reduces your usable active cell area. This physical waste negatively impacts your critical cost-per-watt ratio, making it harder to compete on price.

Core Commercial Advantages of a Laser Scribing Machine

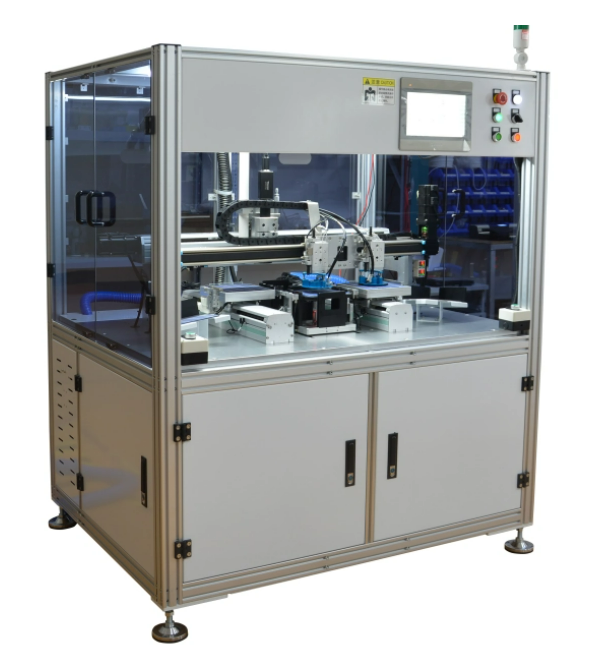

A modern Laser Scribing Machine fundamentally changes the cell separation process. It utilizes non-destructive optical techniques rather than harsh physical grinding. Advanced production systems rely on controlled thermal cleavage instead of pure material ablation. The machine fires a focused beam to rapidly heat a microscopic line across the wafer. A micro-jet of cooling fluid or air immediately follows the beam path. This rapid, localized thermal expansion and contraction cleanly cleaves the silicon lattice. It leaves a remarkably smooth, stress-free edge completely devoid of mechanical chipping.

Advanced laser technologies also minimize the Heat Affected Zone (HAZ). They confine thermal impact strictly to a microscopic boundary. This precise thermal control prevents collateral damage to the cell's delicate p-n junction. Preserving this vital electrical junction ensures optimal conversion efficiency and prevents current leakage along the cut edge.

Throughput speed serves as another massive commercial advantage. Laser systems operate continuously without any physical resistance slowing them down. They easily achieve massive units-per-hour (UPH) production rates, processing thousands of cells hourly. Non-contact handling completely eliminates physical stress during the cutting phase. This approach drastically lowers your broken wafer percentage compared to traditional mechanical handling mechanisms.

Finally, consider the demands of modern cell architectures. High-efficiency TOPCon, HJT, and advanced PERC designs utilize ultra-thin silicon wafers to capture more light. These fragile technologies demand absolutely clean edge separation to function properly. Mechanical tools often shatter them instantly. Laser technology seamlessly adapts to these fragile, next-generation materials, ensuring future-proof production lines.

Laser vs. Diamond Wire: Evaluating the Trade-offs

You must carefully weigh several operational factors before upgrading your production line. Let us compare traditional wire saws directly against modern laser technology. Mechanical cuts always leave a rough, micro-chipped edge. This roughness inevitably invites future stress cracking during lamination. In contrast, laser cuts deliver a mathematically precise, smooth profile.

Operating expenses (OpEx) differ wildly between the two methodologies. Diamond wire systems demand continuous consumable replacements. You must continually purchase new abrasive wires, cutting slurry, and cooling fluids. Slurry management also creates messy environmental hazards and requires expensive disposal protocols. A laser system primarily requires stable electricity and minimal cooling gases. You will need periodic optical maintenance, but your overall daily consumable costs plummet drastically.

You must calculate your payback period by looking at the broader production picture. The initial capital expenditure (CapEx) for sophisticated laser equipment runs significantly higher. Yet, you recover this investment rapidly. You save money immediately by eliminating mechanical consumables. More importantly, you recover massive yield losses. Fewer broken cells translate directly to higher daily production revenue.

Technology Comparison Summary

Key Evaluation Criteria for a Laser Solar Cell Cutting Machine

Not all optical cutting systems perform equally. You must evaluate specific technical criteria before purchasing a Laser Solar Cell Cutting Machine. First, inspect the core laser source specifications carefully. Nanosecond lasers offer standard, highly cost-effective performance for traditional PERC cells. However, highly sensitive HJT cells require specialized handling. You should evaluate picosecond or femtosecond "cold lasers" for these advanced applications. They cost more upfront. However, their ultra-short pulses move so quickly that heat cannot transfer into the silicon lattice. They produce virtually zero HAZ, protecting delicate heterojunction layers from catastrophic thermal damage.

Next, scrutinize the integrated machine vision system. High-resolution CCD cameras remain absolutely critical for precision manufacturing. They provide instant pattern recognition before any cut begins, scanning for microscopic fiducial markers. This intelligent vision system ensures the laser completely avoids vital busbars. It also protects active grid lines from accidental ablation. Accurate optical alignment prevents disastrous electrical shorting and ensures every half-cell functions perfectly.

Finally, assess the machine's automation and software capabilities. The equipment must integrate seamlessly into your existing smart factory environment. Look for easy software synchronization with Automated Guided Vehicles (AGVs). Check hardware compatibility with your existing robotic loading and unloading arms. A lightning-fast cutting machine remains entirely useless if it creates severe upstream or downstream handling bottlenecks.

Implementation Realities and Rollout Risks

Deploying high-tech optical equipment introduces entirely new operational realities. You must prepare your manufacturing facility adequately before installation begins. Neglecting environmental prep work often leads to chronic equipment failure.

Consider these vital facility requirements before taking delivery:

1. Cleanroom Conditions: High-powered lasers demand strict airborne particulate control. Dust easily contaminates focusing lenses, destroying beam quality and reducing cutting power.

2. Stable Power Supply: You need dedicated, isolated power lines. Sudden voltage spikes will permanently damage sensitive laser diodes and optical sensors.

3. Dedicated Thermal Management: Industrial liquid chillers are mandatory. They maintain exact laser diode temperatures during continuous 24/7 operation, preventing thermal drift.

Safety compliance remains equally critical during implementation. You must install robust Class 4 laser safety enclosures around the cutting zone to protect workers from scattered radiation. Proper fume extraction systems are absolutely necessary. They rapidly remove any toxic ablation byproducts from the factory air. Always ensure your setup adheres strictly to regional manufacturing safety standards like CE or OSHA.

Expect a steep learning curve for your engineering team. You will face planned downtime initially. Technicians need significant time for precise beam profiling and focal length calibration. Do not underestimate operator training requirements. You must upskill your line operators rapidly. They must transition from managing physical mechanical tension to adjusting complex optical parameters effectively.

Conclusion

Upgrading your separation methodology is no longer a luxury. Adopting non-contact optical technology remains mandatory for Tier-1 module manufacturers producing advanced half-cut or shingled architectures. Eliminating mechanical stress protects your silicon, boosts your yield, and defends your long-term warranties.

To justify the initial capital expenditure, we recommend you immediately audit your current yield losses. Calculate exactly how much revenue you lose daily to mechanical edge defects and micro-cracks. Request physical sample test cuts from equipment vendors using your exact cell materials to verify actual thermal performance.

Before initiating any vendor RFQs, clearly outline your strict units-per-hour (UPH) targets and precise cell architecture specifications. Moving decisively toward optical separation will secure your manufacturing margins and keep your production lines competitive.

FAQ

Q: What is the typical lifespan of the laser source in a laser scribing machine?

A: Industrial solid-state or fiber laser sources usually last between 20,000 to 100,000 operational hours. The exact lifespan depends heavily on the specific laser technology and your facility's operating environment. Maintaining strict cleanroom conditions and utilizing high-quality industrial chillers significantly extends diode longevity.

Q: Can a laser solar cell cutting machine process ultra-thin HJT cells without warping?

A: Yes, it can process them flawlessly. The equipment must utilize ultra-short pulse lasers, specifically picosecond or femtosecond "cold lasers". These specialized beams move so rapidly they minimize the heat-affected zone. This prevents thermal warping and perfectly protects sensitive heterojunction layers during separation.

Q: How does laser cutting impact the final power output of the solar module?

A: Laser cutting provides a remarkably clean edge completely free of micro-cracks. This preserves the mechanical integrity of the silicon wafer. It prevents unwanted electrical resistance increases over time, ensuring the module consistently meets its rated power output throughout its 25-plus year lifespan.
