How a Module Laminator Enhances Solar Panel Quality

The global transition toward renewable energy has placed solar photovoltaic technology at the forefront of industrial development. As demand for higher efficiency and longer lifespan in solar modules increases, the manufacturing process must evolve to meet stringent durability standards. At the heart of this production line is the lamination stage, a critical phase that determines the structural integrity and environmental resistance of the finished product. A Solar Panel Laminator is the specialized machinery responsible for bonding various layers of the solar module into a single, cohesive, and weatherproof unit.

A Solar Panel Laminator enhances solar panel quality by utilizing controlled heat and vacuum pressure to fuse the glass, encapsulant, solar cells, and backsheet together, effectively eliminating air bubbles and ensuring a hermetic seal that protects the cells from moisture and mechanical stress.

This article provides an in-depth exploration of how advanced lamination technology serves as the backbone of high-quality solar module production. By understanding the mechanical components, the thermal dynamics of the lamination process, and the strategic selection of machinery, manufacturers can significantly reduce defect rates and extend the operational life of their photovoltaic products.

Content Overview

What is a Solar Panel Laminator?

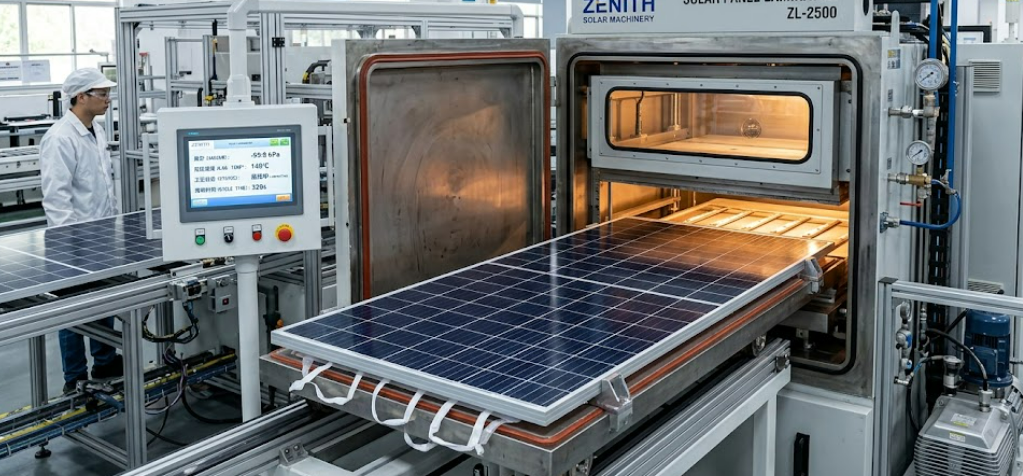

A Solar Panel Laminator is a specialized industrial thermal press designed to encapsulate solar cells between layers of protective materials using a combination of vacuum, heat, and mechanical pressure.

In the sequence of solar module manufacturing, the laminator acts as the final "bonding agent." Before entering the machine, a solar panel consists of several loose layers: a top glass sheet, a layer of encapsulant (usually EVA or POE), the interconnected solar cells, another layer of encapsulant, and a protective backsheet. Without the intervention of a Solar Panel Laminator, these components would remain detached and vulnerable to the atmosphere.

The primary function of the machine is to melt the encapsulant material, allowing it to flow around the solar cells and fill every microscopic void. By applying a vacuum, the laminator removes all air trapped between the layers, preventing the formation of bubbles that could lead to delamination or electrical failure over time. This process creates a solid, transparent, and extremely durable sandwich structure capable of withstanding decades of outdoor exposure.

Modern lamination equipment has evolved to support large-scale production. High-precision sensors and PLC control systems allow for the minute adjustment of temperature curves and pressure cycles. This level of control is essential for modern high-efficiency cells, which can be sensitive to thermal stress or excessive mechanical force during the curing phase.

Key Component of Solar Panel Laminator

The key components of a Solar Panel Laminator include the heavy-duty heating plate, the high-performance vacuum system, the flexible silicone diaphragm, and the precise thermal control unit.

The heating plate is perhaps the most vital component, as it provides the thermal energy required to cross-link the encapsulant. It must maintain high temperature uniformity across its entire surface—often exceeding several square meters—to ensure that every part of the solar module cures at the same rate. Uneven heating can lead to internal stresses or "cold spots" where the EVA does not fully bond, compromising the panel's integrity.

The vacuum system and the silicone diaphragm (or rubber sheet) work in tandem to apply uniform pressure. Once the air is evacuated from the chamber, the diaphragm is lowered onto the module. Because this pressure is fluid and atmospheric, it applies an even force across the cells, regardless of small variations in thickness. For manufacturers focusing on research or small-batch testing, utilizing a compact laboratory laminator allows for the same component precision on a smaller scale to verify material compatibility.

Furthermore, the cooling system and the transport mechanism are critical for throughput. After the heating cycle, the module must be cooled in a controlled manner to stabilize the polymer bonds. Automated transport belts move the modules in and out of the chamber, minimizing idle time and protecting the glass from thermal shock or physical impact during handling.

Types of Solar Panel Laminators

Solar Panel Laminators are generally categorized into single-stage, multi-stack, and continuous automated systems, each catering to different scales of manufacturing and specific product requirements.

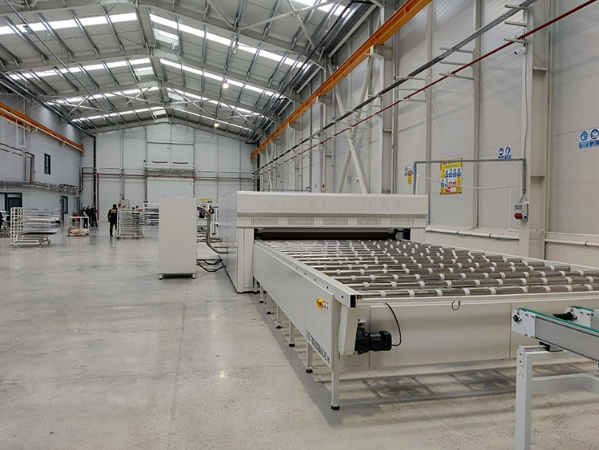

The choice of laminator type often depends on the required throughput and the complexity of the modules being produced. For many years, the single-stage laminator was the industry standard, featuring one heating chamber where the entire vacuum and pressing cycle occurred. While reliable, these units often create bottlenecks in high-volume production lines because the heating and cooling cycles happen in the same space.

To solve efficiency issues, many Tier-1 manufacturers moved toward multi-stack or double-chamber designs. In these systems, the vacuum and heating take place in one chamber, while the subsequent pressing or cooling occurs in another. This allows for a "pipeline" effect where one module is being pressed while the next is already being vacuumed. This significantly reduces the total cycle time per module and optimizes energy consumption by keeping heating elements at a consistent temperature.

Selecting the right configuration involves balancing capital expenditure with long-term labor costs. Fully automated lines incorporate robotics to load and unload the Solar Panel Laminator, ensuring that the delicate glass-cell sandwich is never compromised by human error or contamination.

Detailed Solar Module Lamination Process

The lamination process is a three-phase operation involving air evacuation (vacuuming), heating and cross-linking, and controlled cooling to transform raw components into a unified photovoltaic module.

The first stage is the vacuum phase. Once the "lay-up" (the stack of glass, cells, and EVA) is placed inside the Solar Panel Laminator, the chamber is sealed and a powerful vacuum pump removes all oxygen and moisture. This is critical because any oxygen left inside the module could cause the silver fingers on the cells to oxidize over time, while moisture could lead to corrosion and electrical leakage.

The second stage is the heating and pressing phase. The temperature is raised to the melting point of the encapsulant (typically between 135°C and 150°C for EVA). At this point, the diaphragm applies pressure, forcing the liquified polymer into the gaps between the cells. The chemical process known as cross-linking occurs here, where the polymer chains bond together to form a permanent, rubber-like shield. Precision is required here to ensure the integrated system components of the manufacturing line are synchronized for maximum efficiency.

Finally, the module enters the cooling phase. If a module is cooled too quickly, the glass can shatter or the internal components can shrink at different rates, causing the cells to crack. A professional Solar Panel Laminator uses a controlled cooling press or air-cooling racks to bring the temperature down gradually. This ensures that the module remains flat and that the internal stresses are minimized, resulting in a product that can survive extreme temperature swings in the field.

Benefits of Photovoltaic Module Lamination

The primary benefits of lamination include superior environmental protection, enhanced structural strength, and optimized light transmission, all of which contribute to a higher energy yield over the module's lifetime.

Lamination is the single most important factor in the longevity of a solar panel. By creating a hermetic seal, the Solar Panel Laminator prevents the ingress of water vapor, which is the leading cause of module degradation. A well-laminated panel is resistant to "snail trails," delamination, and corrosion of the electrical interconnects. This protection allows manufacturers to confidently offer 25-to-30-year warranties.

Key Performance Advantages:

1. Optical Clarity: The lamination process removes the air-to-glass interface inside the module. The encapsulant has a refractive index similar to glass, which reduces light reflection and allows more photons to reach the solar cells.

2. Electrical Insulation: The cured encapsulant provides high dielectric strength, insulating the high-voltage cell circuit from the metal frame and the outside environment, which is vital for safety.

3. Mechanical Dampening: The rubber-like nature of the cured EVA acts as a shock absorber, protecting brittle silicon cells from vibrations during transport and wind loads or hail impact once installed.

Through the use of high-quality encapsulation machinery, manufacturers can achieve a gel content (a measure of cross-linking) that is consistent across the entire batch, ensuring uniform quality for every unit that leaves the factory.

Why is Lamination Important?

Lamination is essential because it transforms a fragile assembly of electronic components into a rugged industrial product capable of surviving decades of harsh weather, UV radiation, and thermal cycling.

Without the protection offered by a Solar Panel Laminator, the delicate silicon wafers—which are often thinner than a human hair—would crack under the slightest mechanical pressure. Furthermore, the electrical ribbons connecting the cells are susceptible to oxidation. The lamination process encapsulates these parts in a chemically stable environment, frozen in time and shielded from the corrosive effects of the atmosphere.

Another critical reason for high-quality lamination is the prevention of Potential Induced Degradation (PID). PID occurs when stray currents leak from the cells to the frame, often exacerbated by moisture ingress. A superior lamination cycle ensures that the insulation resistance is high enough to block these paths. Advanced manufacturers often integrate high-stability power control within their facilities to ensure the laminators operate without fluctuations, which could otherwise lead to inconsistent curing.

Ultimately, lamination defines the "bankability" of a solar project. Investors and developers require proof that modules will perform consistently for decades. A rigorous lamination process, verified by peel tests and electroluminescence (EL) imaging, provides the data-backed assurance that the modules are free from micro-cracks and air pockets, making them a reliable asset for the global energy transition.

Choosing the Right Laminator for Your Solar Manufacturing

Selecting the ideal Solar Panel Laminator requires an evaluation of heating uniformity, vacuum speed, cycle time, and the ability to handle various module sizes, including the increasingly popular large-format M10 and G12 wafers.

When shopping for equipment, the "effective lamination area" is the first metric to consider. As the industry moves toward larger modules and twin-peak designs, the Solar Panel Laminator must be large enough to accommodate these formats without edge-cooling effects. Heating uniformity should ideally be within ±2°C across the entire plate to ensure consistent curing of the encapsulant.

Selection Checklist for Manufacturers:

• Heating Method: Oil heating provides excellent uniformity, while electric heating offers faster response times and easier maintenance.

• Vacuum Capability: Look for systems that can reach 100Pa in under 90 seconds to ensure high-speed air evacuation.

• Control System: A user-friendly interface with data logging is essential for quality tracking and troubleshooting.

• Compatibility: Ensure the machine can handle different materials, such as EVA, POE, and various backsheet types (TPT, KPE, etc.).

For companies looking to scale, the degree of automation is a major factor. Integrated loading and unloading tables reduce the risk of glass breakage and allow for a seamless flow into the framing and testing stations. Whether you are operating a massive factory or a specialized facility using a compact lamination unit, the accuracy of the thermal cycle remains the most important variable for product success.

Additional Considerations for Solar Laminator Users

Effective operation of a Solar Panel Laminator involves regular maintenance of the silicone diaphragm, calibration of temperature sensors, and optimization of energy consumption to maintain a competitive edge.

The silicone diaphragm is a consumable part that undergoes significant thermal and mechanical stress. Over time, it can lose its elasticity or develop pinhole leaks, which will lead to air bubbles in the modules. Manufacturers should implement a strict replacement schedule and use high-tear-resistance membranes to maximize the number of cycles between changes. Similarly, the vacuum pump oil must be changed regularly to ensure the system can pull a deep vacuum consistently.

Energy efficiency is another growing concern. Modern Solar Panel Laminators are designed with heavy insulation to retain heat and high-efficiency motors for the vacuum pumps. By optimizing the "standby" settings and the heating ramps, factories can significantly lower their carbon footprint and operational costs. Integrating industrial-grade power solutions into the factory infrastructure helps in maintaining the steady current needed for these high-load machines.

Finally, cleanliness within the lamination room is paramount. Even a tiny piece of hair or dust trapped inside the module during the lamination process can create a "hot spot" once the panel is installed in the sun, potentially leading to a fire. Using clean-room protocols and automated cleaning brushes for the glass before it enters the laminator will ensure the highest possible yield and the lowest rate of RMA (Return Merchandise Authorization) claims.

Conclusion

The Solar Panel Laminator is far more than just a heating press; it is the bridge between a collection of fragile components and a durable energy-generating asset. By mastering the variables of temperature, vacuum, and pressure, manufacturers can produce solar modules that withstand the test of time and environmental extremes. From the selection of key components like heating plates and diaphragms to the strategic choice of automated multi-chamber systems, every decision made in the lamination stage directly impacts the final quality and efficiency of the photovoltaic module. As the industry continues to innovate with new materials like POE and larger wafer sizes, the role of the laminator will remain central to achieving the reliability required for a sustainable, solar-powered future.
