The lamination process acts as the absolute bottleneck in modern photovoltaic manufacturing. It represents the exact point determining module durability, weather resistance, and final yield rates. If encapsulation fails during this stage, the entire module inevitably fails in the field. Manufacturing directors and process engineers face a constant primary tension on the factory floor. They must effectively balance high-throughput cycle times against the critical need for zero-defect encapsulation. Perfect EVA or POE cross-linking remains non-negotiable for strict quality control. Therefore, you must critically evaluate any Solar Panel Laminator based on its core engineering. Focus heavily on thermal control and vacuum precision rather than superficial specifications. By looking deeply into these specific functional metrics, factories protect their production pipelines and ensure long-term operational performance. Making the right equipment choice directly secures your manufacturing output.
Key Takeaways
Lamination directly dictates the mitigation of Potential Induced Degradation (PID) and micro-cracking; precision equipment is a yield-protection investment.
The choice between thermal oil and electric heating systems dictates your factory’s temperature uniformity (±1°C to ±2°C target) and energy consumption overhead.
Evaluating a solar laminator requires analyzing its vacuum pump efficiency to prevent micro-voids during the encapsulation process.
The Direct Link Between Lamination Equipment and Module Viability
Substandard lamination directly causes premature field failures. When encapsulation falls short, weather elements attack the internal cells relentlessly. Poorly laminated modules degrade rapidly under typical environmental stress. These underlying manufacturing flaws manifest as catastrophic defects in deployed solar arrays. We commonly observe several critical failure modes originating from the lamination stage:
Severe delamination occurring between the outer glass and internal polymer layers.
Moisture ingress penetrating the module edges and corroding internal busbars.
Compromised insulation resistance leading to highly dangerous current leakage.
Accelerated Potential Induced Degradation (PID) spreading across the entire panel string.
The yield equation demands your utmost attention. The equipment serves as the strict gatekeeper of your entire production line. A mere 1% increase in reject rates at this stage disproportionately impacts overall production profitability. Preceding cell-assembly costs are already completely sunk by this point. You cannot rework a poorly laminated module. The raw materials become permanent scrap. Securing a reliable encapsulation process protects your upstream manufacturing investments.
Modern equipment must handle diverse materials smoothly. The industry continues shifting toward varied module architectures. Glass-glass, glass-backsheet, and flexible modules demand highly varied handling parameters. Advanced encapsulants like EVA, POE, and PVB require distinct thermal profiles. Your chosen machine must process these differing materials without requiring major mechanical retrofits. Flexibility ensures your factory can adapt rapidly to changing market demands.

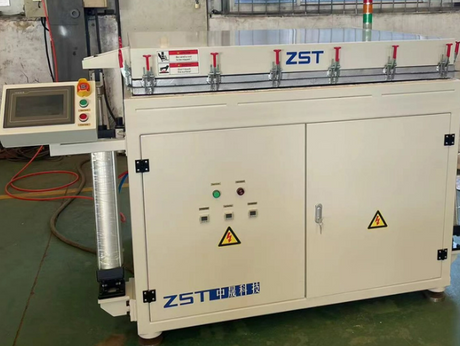

Evaluating Solar Panel Laminator Heating Technologies
Heating technology fundamentally determines panel quality. Manufacturers primarily choose between two distinct heating architectures. Each system presents specific operational advantages and maintenance realities. You must align these technical characteristics against your facility capabilities.
Thermal oil heating systems utilize fluid-based heat transfer across the entire platen. A dedicated boiler unit heats specialized synthetic oil. Powerful pumps circulate this fluid through complex internal channels. They deliver exceptional temperature stability and uniformity across massive surface areas. These systems remain ideal for continuous, high-volume production lines. However, they carry specific operational risks. Thermal oil requires slower heat-up times initially. Facilities must perform meticulous maintenance schedules to prevent hazardous fluid leaks.
Electric heating systems place direct electrical elements within the platen structure. This architecture eliminates external boilers and fluid pumps. You gain rapid temperature adjustments through direct electrical control. They offer much cleaner operation overall. Factories save valuable floor space due to a smaller facility footprint. The primary risk involves potential localized hot spots. If the controller logic or element spacing is subpar, uneven heating ruins the polymer cross-linking.
Heating Technology
Core Mechanism
Primary Advantages
Notable Risks
Thermal Oil Systems
Fluid circulation through internal platen channels
Exceptional thermal stability; Ideal for 24/7 high-volume runs
Direct electrical resistive elements inside the platen
Rapid temperature changes; Smaller footprint; Cleaner operation
Risk of localized hot spots if element spacing is poorly designed
Critical Evaluation Dimensions: Features to Production Outcomes
Platen temperature variance must stay strictly within ±1.5°C during the entire cycle. This precision ensures uniform gel content across the entire module surface. When temperature fluctuates, polymer cross-linking becomes highly inconsistent. Weakly bonded areas eventually separate under thermal cycling in the field. Uniform heating guarantees the encapsulant reaches its exact melting phase simultaneously.
Vacuum precision heavily influences void elimination. Assessing the evacuation rate is absolutely critical. A robust multi-stage vacuum system remains entirely non-negotiable. It removes trapped air before any polymer melting occurs. This prevents microscopic bubbles from forming near the busbars. These bubbles cause severe localized hotspots later. A typical high-performance vacuum sequence follows these specific stages:
Immediate chamber sealing and initial atmospheric evacuation.
Rapid roughing pump activation to clear bulk air away from the module.
High-vacuum holding phase to extract trapped micro-bubbles from the cell matrix.
Controlled polymer melt transition occurring strictly under sustained negative pressure.

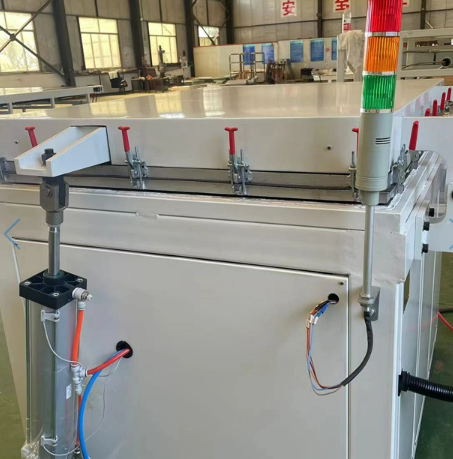

Pressure application requires sophisticated pin and diaphragm mechanics. Ultra-thin wafers break easily under sudden mechanical stress. Controlled pressure staging completely prevents dangerous cell shift. It avoids micro-cracking and edge-pinching in modern wafer applications. The lower chamber pins hold the glass safely above the heated platen. They lower the module gradually as the vacuum stabilizes. The upper diaphragm then applies downward force evenly.
Cooling press integration solves major throughput challenges. High-throughput lines strictly require a dedicated cooling stage. Modules must transition safely below the encapsulant's glass transition temperature. This rapid cooling must happen before automated arms handle the panels. Moving a hot panel frequently causes internal cell shifting or glass warping. A dedicated cooling press locks the polymer structure firmly into place.
Implementation Realities and Maintenance Risks
Vendors often downplay real-world facility footprint requirements. You must account for substantial power loads and heavy utility draws. Air compressors must supply perfectly dry, consistent pressure. Exhaust management systems must safely vent chemical outgassing away from the factory floor. Proper facility planning ensures your equipment integrates smoothly. Underestimating utility needs causes severe installation delays.
Acknowledge the silicone diaphragm as your highest-wear consumable. The intense heat and mechanical stretching degrade the rubber steadily. Outgassing chemicals also attack the silicone surface over time. Evaluate competing machines based on diaphragm replacement ease. Measure how many downtime hours a complete swap requires. Check the typical lifecycle expected under your specific operational loads. Frequent replacements destroy production schedules.
Operator control systems require robust, open architectures. An intuitive Human-Machine Interface (HMI) paired with an industrial PLC ensures smooth operations. Recipe management holds paramount importance for process engineers. Open software architecture allows teams to tweak settings freely. They can adjust precise temperature ramps and vacuum hold times. This flexibility proves vital when introducing entirely new module designs.
Shortlisting Logic & Vendor Assessment Framework
Never sign off on equipment without rigorous Factory Acceptance Testing (FAT). You must demand definitive proof of temperature uniformity. Require multipoint thermal mapping data across the entire platen surface. Verify all specified cycle times under full production loads. A machine behaving well empty often struggles when fully loaded. The FAT protects your capital investment from underperforming hardware.
Assess overall scalability and physical modularity. Can the Solar Laminator transition from a single-deck to a multi-deck configuration later? Facility capacity requirements will inevitably grow over time. Your equipment should scale vertically alongside them. Adding heating decks vertically saves precious factory floor space. Modular systems prevent you from purchasing entirely new base machines during expansion phases.
Evaluate the vendor's regional service presence and parts availability. A high-performance machine becomes a massive liability otherwise. Waiting three weeks for a proprietary sensor cripples factory production entirely. You need guaranteed Service Level Agreements (SLAs) dictating response times. Ensure the vendor stocks critical spare parts locally. Reliable support keeps your manufacturing line running without disastrous interruptions.
Conclusion
Selecting precision lamination equipment acts as a direct investment in product longevity. It firmly establishes your brand reputation for quality. A substandard machine compromises your entire downstream yield. Protect your production pipeline by prioritizing thermal uniformity, vacuum control, and robust mechanical design over superficial metrics.
We advise mapping your specific material roadmap carefully. Transitioning to HJT or TOPCon cells requires precise thermal and pressure profiles. Match these future requirements against the capabilities of your shortlisted machines today. Demand comprehensive Factory Acceptance Testing before finalizing any deployment. Ensure your maintenance teams understand the utility and consumable realities ahead of time.
FAQ
Q: What is the standard cycle time for a modern solar panel laminator?
A: Cycle times typically range from 12 to 18 minutes. This depends heavily on the chosen encapsulant material. EVA generally cures faster than POE. The timeframe also varies depending on whether the machine uses a single-step or dual-step curing process.
Q: How does a solar laminator prevent cell micro-cracking?
A: It prevents cracking through highly controlled, staged release of the upper vacuum chamber. This specialized mechanism allows the heavy silicone diaphragm to apply pressure gradually. The downward force spreads perfectly evenly across the fragile module matrix.
Q: What is the difference between single-deck and multi-deck laminators?
A: Single-deck models remain standard for moderate volume or specialized production runs. Multi-deck models stack several heating chambers vertically. This vertical architecture multiplies your total throughput significantly while occupying the exact same factory floor footprint.
Q: How often does the silicone diaphragm need replacing?
A: The lifespan depends entirely on daily throughput and chemical encapsulant outgassing. It typically ranges between 3,000 to 5,000 operating cycles. Utilizing high-quality EVA or POE limits chemical residue buildup, effectively extending this consumable lifespan.
