Heating Method: Utilizes a hot plate heated by circulating heat-conducting oil.

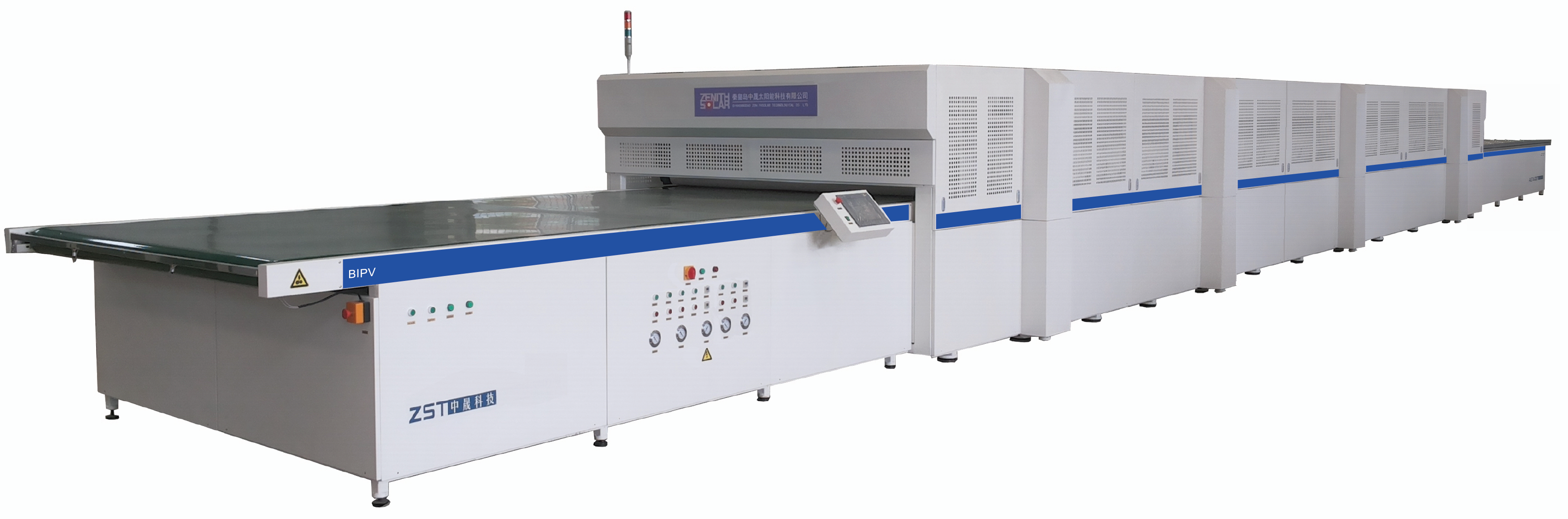

Main Structure: Comprises feeding, laminating, and discharging units, along with a heating system and control system, supporting both automatic and manual operations.
Panel Flatness: Ensures panel flatness of ≤ 300um at temperatures between 130℃ and 150℃ during continuous operation (16-24 hours per day).
High Vacuum: Integrated vacuum pump achieves a vacuum of 150Pa in under 90 seconds and includes air purification for system stability.
Rubber Technology: Wrinkle-free technology extends rubber lifespan and enhances laminated component quality.
Pressurization: Adjustable speed/time for pressurization, ranging from 0 to 90 seconds.
Airbag Pressure: Adjustable pressure range from 0 to 1.5 atm.
Cleaning System: Integrated brush roller system cleans conveyor belts, removing PVB/EVA adhesive residues.
Height Adjustment: Adjustable opening height from 50 to 200mm.
Integrated Design: Combines vacuum chamber and heating panels, ensuring a high vacuum without distortion.
Sealing Tape: Easy to install, long-lasting vacuum sealing tape.
Rubber Replacement: Quick and easy rubber replacement, taking only 25 minutes.
Lift Structure: Air cylinder lift ensures smooth opening and closing, with protection against air pipe failure.
Space-Saving: Built-in heating station conserves space and is maintenance-free.
Vacuum Valve Design: Ensures reliable operation, long life, and easy maintenance.
Anti-Staining Fabric Belt: Prevents contamination of the silica gel plate EVA.
Design Efficiency: Space-efficient design, reducing space usage by up to 50%.
Control Modes: Offers both automatic and manual control modes.
Control System: Uses Taiwan Yonghong PLC control with a touch screen interface, available in Chinese and English.
Temperature Control: Intelligent control with ±1℃ accuracy, ranging from 30℃ to 150℃, with a maximum of 180℃.
Operation Flexibility: Supports both manual and automatic modes for easy operation and maintenance.
Electrical System: Uses dependable low-voltage components from Schneider.
User Interface: 10.4" touch screen with a user-friendly interface.
Temperature Uniformity: Achieves ±2℃ uniformity with a unique heating cycle system.
Process Memory: Automatic memory for process parameters, ensuring consistent quality.
Production Statistics: Tracks the number of laminated units for easy maintenance.
Integrated Control Technology: Combines various technologies for complex production needs.
Vacuum Monitoring: Real-time vacuum chamber monitoring on the screen.
Positioning System: Precise positioning for feeding and discharging.
Alarm System: Detects and alerts for material slippage.
Continuous Operation: Capable of continuous automatic feeding, laminating, and discharging.
