How The Lamination Process Can Affect The Quality Of Your Solar Panels

In photovoltaic manufacturing, lamination is the ultimate point of no return. Once a module passes through this critical stage, any structural, chemical, or alignment defects become permanent. You cannot disassemble and rework a fully cured panel. This reality makes the encapsulation phase your highest-leverage opportunity for strict quality control and yield optimization on the factory floor.

Encapsulating solar cells typically involves polymer sheets like Ethylene Vinyl Acetate (EVA) or Polyolefin Elastomer (POE). This protective barrier dictates the module's weatherability, electrical insulation, and ability to achieve a 25-year operational lifespan. If encapsulation fails, moisture ingress, electrical shorts, and severe power degradation quickly follow.

Achieving precise control over the lamination process directly mitigates long-term warranty risks. It also drastically improves production yields. By understanding how exact temperature, pressure, and vacuum levels interact to build flawless modules, and by choosing the right equipment, you protect your profit margins. We will explore exactly how this process dictates panel integrity and why selecting the proper machinery transforms manufacturing outcomes.

Key Takeaways

• Lamination directly controls a solar panel's resistance to Potential Induced Degradation (PID), moisture ingress, and mechanical stress.

• The three critical variables in encapsulation—temperature uniformity, vacuum efficiency, and pressure application—dictate the cross-linking rate of the encapsulant.

• Investing in a high-grade PV module laminator reduces standard deviation in mass production, lowering the cost of poor quality (COPQ) and preventing field failures.

• Evaluating a laminator requires looking beyond cycle times to assess thermal plate consistency and cooling press efficiency.

The Financial Impact of Lamination on PV Module Lifespans

Yield losses after lamination carry heavy financial penalties. Because you cannot disassemble and repair a fully cured module, the materials fuse together permanently. Therefore, a mere 1% increase in lamination defects can severely impact your production line profitability. Industry experts refer to this as the Cost of Poor Quality (COPQ). It encompasses wasted raw materials, lost labor hours, discarded inventory, and increased waste disposal fees.

To prevent field failures, manufacturers must subject modules to rigorous industry testing protocols. Standards like IEC 61215 test panels under extreme damp heat (typically 85°C at 85% relative humidity for 1000 hours) and thermal cycling. Lamination quality entirely determines whether a panel passes or fails these tests. A perfectly sealed module resists thermal expansion stresses without structural compromise. An imperfect seal lets moisture bypass the edges and attack the internal circuitry.

Several core defects stem directly from substandard lamination processes on the factory floor:

• Delamination: This occurs when chemical adhesion fails. The internal layers separate, creating gaps. Moisture enters these voids, leading to rapid internal corrosion of the busbars.

• Micro-cracks: Uneven pressure distribution during the pressing phase causes tiny fractures in the fragile silicon cells. These worsen over time due to thermal expansion.

• Snail Trails & PID: Incomplete polymer cross-linking leaves active chemical pathways open inside the encapsulant. This low gel content accelerates Potential Induced Degradation (PID) and creates visible, silver-like snail trails across the cells.

We must acknowledge one vital reality regarding manufacturing constraints. While lamination is undoubtedly a critical step, it cannot fix inherently bad components. Raw materials like glass, backsheets, and encapsulants must meet stringent baseline quality standards before entering the chamber. If you input compromised or moisture-laden materials, even the most advanced process will fail.

Core Variables: How the Process Dictates Panel Integrity

Three primary variables control the structural and electrical integrity of your final product. You must balance vacuum, temperature, and pressure perfectly. This delicate balance dictates how well the encapsulant cures, cross-links, and ultimately protects the delicate internal cells.

First, achieving a deep vacuum quickly is essential for material stability. The vacuum stage removes ambient air from the chamber. More importantly, it extracts outgassing volatiles from the heated encapsulants before the curing phase begins. If you do not evacuate this air rapidly, microscopic bubbles form. Trapped bubbles create permanent weak points where delamination inevitably starts during field deployment.

Second, precise heating ensures vital thermal uniformity. Temperature drives the chemical reaction inside the encapsulant material. As it heats up, the polymer cross-links, forming a solid, durable gel network. If the heating plate applies uneven temperatures, the gel content varies wildly across the panel. These localized weak points compromise structural integrity. Strict temperature control prevents this inconsistency.

Finally, mechanical pressure drives long-term adhesion. Controlled pin movement and targeted membrane pressure apply uniform downward force across the entire glass surface. This force presses the various layers together firmly. It prevents delicate silicon cells from shifting laterally out of alignment. It also ensures aggressive edge-to-edge sealing, leaving zero gaps for environmental exposure.

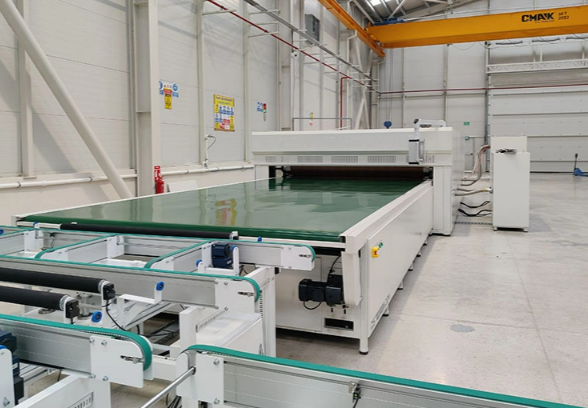

Evaluating a PV Module Laminator for Enterprise Production

Upgrading your factory requires careful, methodical equipment evaluation. You must look far beyond basic marketing specifications and cycle times to understand how the machinery behaves under continuous mass production loads.

Start by closely examining heating plate technology. Manufacturers constantly debate the merits of electric versus oil-heated platens. Oil-heated systems generally offer superior thermal mass and stability across large surface areas. High-end equipment guarantees thermal uniformity of ±1.5°C across the entire platen surface. This exactness ensures consistent cross-linking for every module in the batch, eliminating cold spots.

Next, consider your throughput demands. You must choose between multi-chamber and single-chamber systems based on your facility's volume goals. Multi-chamber systems separate heating, laminating, and cooling into distinct zones. A module moves seamlessly from one chamber to the next. This architecture doubles or triples throughput without sacrificing crucial curing time. Single-chamber machines handle the entire process in one space, suiting smaller, highly specialized product runs.

Vacuum pump efficiency also matters immensely in modern production. Today's module designs use thicker encapsulants, like POE, heavily favored for bifacial or N-type cell structures. These advanced materials outgas significantly more than standard EVA. You need exceptionally high evacuation rates. A slow or underpowered pump cannot remove these volatiles in time, leading directly to trapped gasses and compromised edge seals.

Finally, integrating a dedicated cooling stage is entirely non-negotiable. Glass expands under intense chamber heat. Exposing hot modules immediately to room temperature causes rapid warpage. It also locks invisible residual stress into the glass structure, which shatters easily upon installation. Integrated cooling presses gradually step down the temperature under controlled pressure. This relieves stress and ensures a perfectly flat, highly durable panel.

Troubleshooting Common Defects with Your Solar Panel Laminator

Production managers face daily challenges on the factory floor. Process deviations happen unexpectedly. The ability to troubleshoot these deviations quickly saves thousands of dollars in wasted materials and lost time. Your equipment must support rapid diagnostics.

1. Addressing Bubbles at the Edges or Center: Air bubbles remain the most frequent lamination defect. They usually point to vacuum staging issues. To fix this immediately, adjust the vacuum hold time before dropping the pins. You must give the encapsulant more time to completely outgas. Alternatively, inspect the flexible membrane for micro-punctures. Even a microscopic pinhole compromises the vacuum seal.

2. Fixing Cell Shifting or String Misalignment: Cells floating out of alignment ruin both module aesthetics and internal electrical connections. A membrane deploying too aggressively usually causes this lateral movement. Calibrate the pressure ramp-up rate on your solar panel laminator. You need a gradual, smooth pressure application to hold strings firmly in place without shoving them sideways.

3. Correcting Inadequate Gel Content (Failed EVA Peel Tests): Low gel content means the polymer did not cross-link properly. This leads to immediate and catastrophic adhesion failures. Extend the curing cycle time to solve this issue. If the problem persists despite cycle adjustments, verify thermocouple accuracy across all heating zones. A broken sensor might misreport temperatures, leaving severe cold spots on the platen.

These scenarios are not theoretical exercises. They represent the rigorous daily realities of solar manufacturing. Navigating them requires highly programmable HMI (Human-Machine Interface) systems. Operators need clear, real-time readouts and granular control over every process parameter to maintain consistent, profitable yields.

Shortlisting Equipment: CAPEX vs. Long-Term ROI

When selecting advanced machinery, upfront capital expenditure (CAPEX) represents only one fragment of the overall financial picture. You must evaluate long-term return on investment (ROI) by closely analyzing machine reliability, uptime potential, and technological adaptability.

Focus heavily on machine uptime and scheduled maintenance intervals. Evaluate how easily your maintenance teams can access critical components during routine servicing. Quick-change membrane systems keep production lines moving with minimal disruption. Prolonged, complex downtime destroys quarterly profitability much faster than slightly higher initial equipment acquisition costs.

Future-proofing stands as another critical consideration for buyers. Cell technology evolves at a breakneck pace. Today, you might run standard PERC cells. Tomorrow, you will likely handle HJT, TOPCon, or perovskite tandem structures. These advanced cells are remarkably sensitive to heat and physical stress. They require lower-temperature, higher-precision lamination profiles. Ensure the equipment you purchase today possesses the thermal agility to support the stringent requirements of next-generation technologies.

Lastly, prioritize data logging and traceability features. Modern warranty claims span up to 25 years and require strict proof of manufacturing quality. High-end enterprise laminators integrate seamlessly with factory Manufacturing Execution Systems (MES). They meticulously log temperature, pressure, and vacuum data for every single panel produced. If a field failure occurs five years later, you can trace the exact processing conditions of that specific serial number. This traceability defends your brand against unwarranted claims.

Conclusion

The lamination process stands as the ultimate arbiter of a solar panel's long-term durability. It fundamentally dictates the product's market viability. Procuring excellent silicon cells and premium anti-reflective glass means absolutely nothing if the encapsulation phase fails on the production floor.

To stay competitive in a crowded market, standardizing your equipment limits process variations. Standardization creates predictable, high-yield outcomes across multiple global production lines. Unwavering consistency is the true hallmark of top-tier, bankable solar manufacturers.

We advise you to evaluate your current cycle times, material yield rates, and machine uptime today. Determine if your aging machinery is holding back your daily throughput or causing hidden micro-defects. If you struggle with high standard deviations or plan to upgrade to highly sensitive new cell technologies, take decisive action. Reach out for a technical consultation or request a live equipment demo to discuss upgrading your production line. Investing intelligently here secures your long-term dominance in the solar industry.

FAQ

Q: What is the ideal gel content for EVA after lamination?

A: Typically, the ideal gel content for EVA ranges between 75% and 85%. A lower percentage indicates incomplete cross-linking, which leads to poor adhesion and increased moisture ingress risks. Conversely, a higher percentage can cause the polymer to become overly brittle. Brittleness reduces the module's vital ability to absorb mechanical stress during shipping and extreme weather events.

Q: How long does the solar panel lamination process take?

A: A standard encapsulation cycle takes roughly 12 to 20 minutes. This duration depends heavily on the specific encapsulant used, as POE requires significantly more time than EVA for proper outgassing. Additionally, utilizing a multi-chamber PV module laminator drastically speeds up effective factory throughput by separating the heating, curing, and cooling stages.

Q: Can a laminator fix moisture issues in the raw materials?

A: No. While the deep vacuum removes immediate ambient air from the chamber, it cannot eliminate deeply absorbed moisture. Encapsulants and backsheets must always be stored in strict, climate-controlled environments prior to processing. Moisture introduced through poor warehouse storage will cause rapid delamination regardless of the machinery's power.

Q: What is the difference between encapsulating standard mono-facial and bifacial modules?

A: Bifacial modules utilize a heavy glass-glass structure instead of a flexible polymer backsheet. This rigid architecture requires much stricter pressure control to prevent shattering the rear glass during the pressing phase. They also frequently use POE encapsulants to enhance UV resistance. POE requires longer outgassing times in the chamber to prevent permanent bubble formation.
